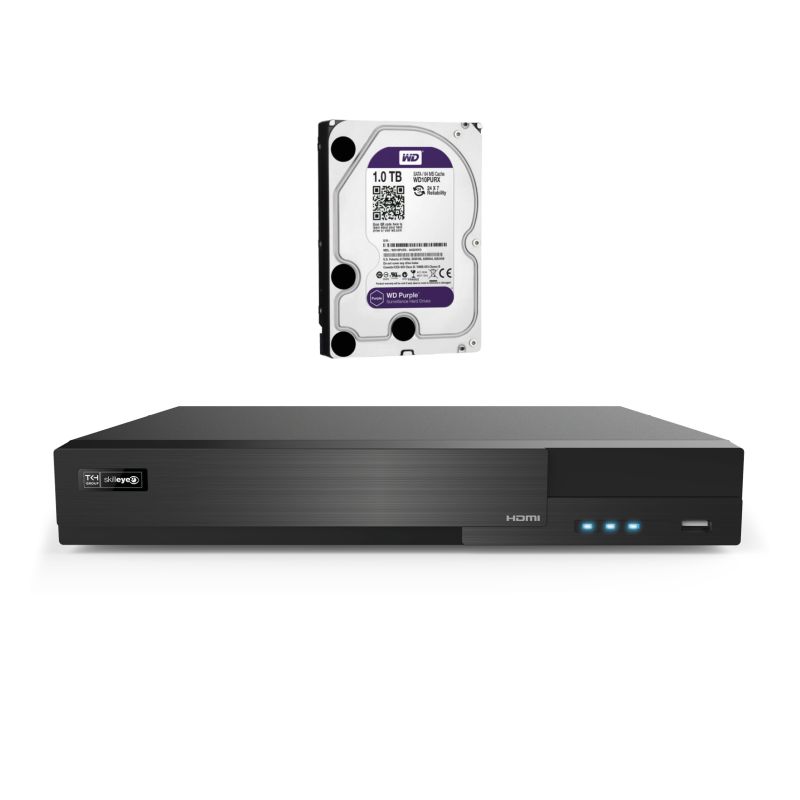

4 In NVR, H.265, max 8MP, 400Mbps, 4 POE, HDMI/VGA

TKH Skilleye 4-channel NVR, Max Recording Resolution 8MP, Max Total Recording Bandwidth 40Mbps, 4 10/100Mbps PoE ports (15.4W) on board PlugAndPlay. ONVIF Profile S compatible. H.264/H.265 Compression, Embedded Linux Operating System, Pentaplex, 1 RCA Audio Input on board + Audio Inputs supported on board IP cameras, 1 RCA Audio Output on board. 1 HDMI main video output with resolution up to 4K and VGA (FullHD). Dual-Stream Recording for each video signal; Recording on Time Schedule, Motion, Alarm or Manual; Backup to USB or network in DAT or AVI format; Simultaneous 4 channel playback; 2 USB 2.0 ports; Web viewer (IE7+, Safari, Chrome, Firefox), CMS for Microsoft Windows & Apple iOS, Smartphone viewer (iPhone/iPad, Androïd). Up to 10 simultaneous users on the Ethernet network. No Alarm Inputs on board, supports alarm inputs on board IP cameras, No Alarm Outputs. Max 1 HDD 3.5 inch SATA (not included) max 8TB, 1 10/100/1000Mbps RJ45 Ethernet network card for network connection; network protocols DHCP, TCP/IP, HTTP, SMTP, NTP, DNS, PPPoE, free DDNS, ONVIF, AutoNAT, AutoDDNS, QRCode. Power supply 48VDC/10W (without HDD, without IP cameras connected), power supply included. Operating temperature from -10 degrees C to +50 degrees C; Relative humidity from 10 percent to 90 percent. Dimensions (WxHxD): 300 x 52 x 248 mm.

3.5" SATA 2000GB (2TB) HARD DRIVE

Technical characteristics: Capacity 2 TB Format 3.5-Inch SATA connector Compatibility Up to 64 cameras per unit for video surveillance security systems with more than 8 slots. SATA Interface Transfer Rate up to 175MB/s Disk Speed (RPM) Recording Technology CMR Cache Size 256MB Warranty 3-Year Limited Warranty Dimensions (L x W x H) 147mm x 101.6mm x 26.1mm Weight 450gms Model Number WD23PURZ Operating Temperature 0°C to 65°C Non-Operating Temperature -40°C to 70°C Certifications BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
