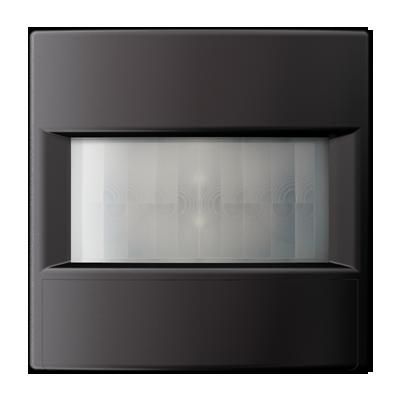

JUNG AL3181-1D KNX 180° detector for bus coupler 2073U - Universal with alarm signaling - lens type 1-10 m - dark aluminum

KNX automatic switch 1.10 m universal - Motion sensor KNX AL 3181-1 D – Jung – 4011377155824: Bus system, KNX yes, Bus system, radio KNX no, Bus system, bus radio no, Bus system, LON no, System bus, Powernet no, Version Motion sensor, Mounting type Under-plaster, Material Plastic, Material quality Thermoplastic, Surface protection painted, Surface version matt, Color Aluminium, Transparent no, With bus coupling no, Secondary input yes, Flush wall protection/ Rear field monitoring no, Mode selector yes, Animal zone yes, Stair control yes, Adjustable response brightness yes, Teach function for response brightness yes, Self-learning switch-off delay yes, DALI-2 certified no, Optimal mounting height 1 ,1 m, Max range on one side 5 m, Max front range 8 m, Detection range diameter on the floor 10 m, Vertical detection angle 6 °, Horizontal detection angle 0..180 °, Number of channels 1, Min ON duration 10 s
