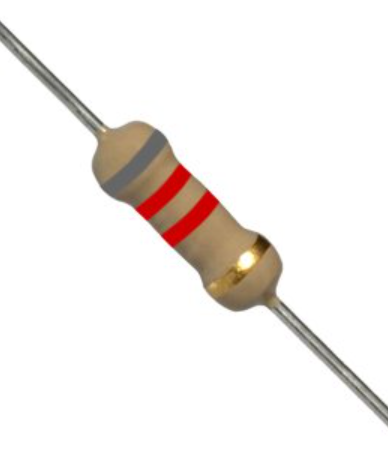

Resistance 8.2 kOhm, 1/4 W, 5%

GIBIDI P9ER5148K2-10 Resistance 8.2 kOhm, 1/4 W, 5%

MT Code: GBD_P9ER5148K2-10
Manufacturer Code: P9ER5148K2-10
Brand: GIBIDI

Standard carbon layer resistance with axial rheophores for PTH (Pin to Hole) installations. Carbon film resistors are suitable for general electronic and electrotechnical applications. They are composed of a ceramic support coated with charcoal using specific high-temperature production processes. The desired resistive value is obtained by the controlled removal of part of the coating deposited previously, creating a “spiral” path along the resistor body. This type of resistor is therefore not recommended for high-frequency applications for which it is advisable to use specific anti-inductive resistors

The resistor body is covered with epoxy resin that preserves its electrical and mechanical characteristics.

Resistance value: 8.2kΩ

Nominal power: 1/4W

Tolerance: 5% Length:

6 mm (L) Diameter: 2.3 mm (D)

Rehole length: 26.5 mm (H) Reinforcement diameter:

0.5 mm (d)

Data Sheet
