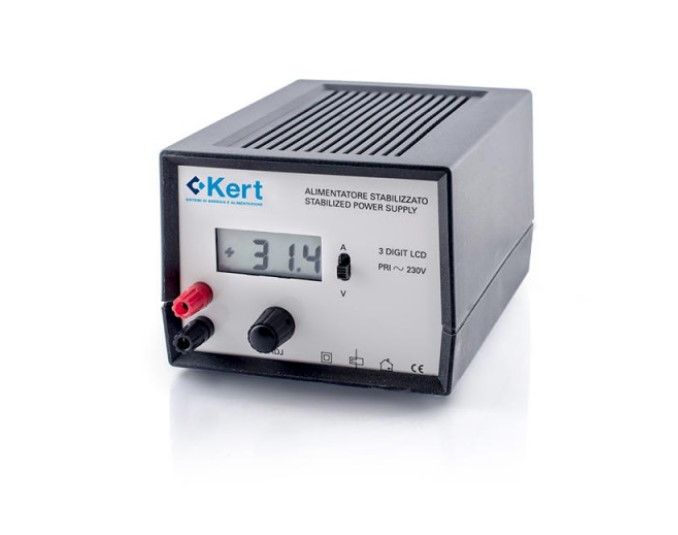

KERT KAT5VD 1÷15Vdc 5A variable output stabilized power supply
- MT Code
- KRT_KAT5VD
- Manufacturer Code
- KAT5VD
- Brand
- KERT
Description
Stabilized variable output power supply for laboratory applications, allows continuous adjustment of the output voltage in a range between 1 and 15 Vdc with a maximum current limitation of 5A (3.5 A nominal). Immediate display of the voltage set on a 3-digit LCD display. Possibility to switch the display between Output Current and Output Voltage. There are protections against overheating, short circuit, and overload. The cooling of the internal electronics is entrusted to an automatically activated fan.
CHARACTERISTICS COD. KAT5VD
- Output voltage: 1÷15 Vdc
- Output current: 3.5 A
- Input voltage: 230 VAC ± 10%
- Input frequency: 50 Hz
- Current protection: 5 A
- Ripple: 20 mVpp
- Protections: Short Circuit, Overload, Thermal
- Cooling: Fan
- Display signals: Output current/ Output voltage
- Protection class: IP20
- Operating temperature: 0-50°C
- Relative humidity not condensed: 0÷ 95%
- Width: 210 mm
- Height: 97 mm
- Depth: 125 mm
- Weight: 2 Kg
Data Sheet
| Codice Produttore | KAT5VD |
|---|---|
| Brand | KERT |
