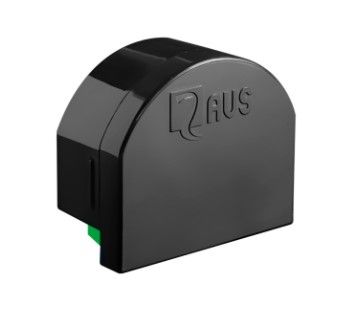

AVS ELECTRONICS 1120136 MDS 201 wireless home automation module with 1 relay

Wireless home automation module with 1 relay Wireless actuator with 1 10A output with load and temperature control that allows you to manage any electrical device, powered at 230 VAC. The actuator can be controlled by the Raptor and Xtream series AVS control units, the MyAVSAlarm APP or with a remote control in stand-alone mode and allows the control and measurement of the load and the reading of the ambient temperature using the optional ST015 probe.

- 10A/250VAC output (cos φ=1)

- Impulsive or static output

- Alternating or continuous power supply (100-250VAC, 50/60Hz, 24 - 40VDC)

- Output power: 2300W (230VAC)/240W (24VDC)

- 3 control inputs (type: button or switch) for local control (No. 1) or to send radio commands to the alarm center (No. 2)

- 1 optional thermal probe input

- Integrated electrical power, voltage and current meter

- Monitoring of abnormal conditions and disconnection in case of overload

- Can be controlled locally via dedicated input, remotely via APP, from the keyboard or with AVS remote controls (max 8)

- Thermostat function - Load release function with priority managed by the user.

ELECTRICAL PROTECTION: for greater electrical protection, it is necessary to use the fuse with fuse holder code. 1187111.

RADIO Characteristics: Use: indoor - Frequency: FM 868 MHz - multi-frequency - bidirectional - Radio range: up to 700 m in the open field - Integrated radio repeater function - Communication: relay output status - input status - Ambient temperature (0.1°C resolution with optional probe) - Electrical power consumed - Voltage in Volts - Survival - Module Type - Simplified programming: self-learning in the control unit - setting operating parameters directly from the control unit, PC or APP MYAVS MANAGER - Dimensions (DxLxH) : 44 x 39 x 20 mm - Compatibility: RAPTOR/XTREAM control panels with XSAT WS4, XSAT WS4 PRO, XSAT WS4 VIDEO.
