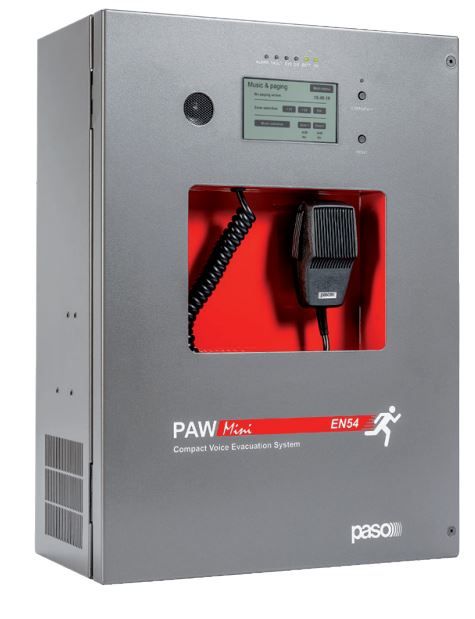

PASO PAW1101-V 100W 1CH EN54 Compact System

100W 1CH EN54 Compact System

Integrated wall voice evacuation system - 100 W, 1 zone The PAW1000-VES series of the new PAW Mini range, consisting of new integrated “light” voice evacuation systems for emergency systems, has been specially designed for wall mounting and is equipped with a certified control unit in compliance with EN 54-16:2008 and EN 54-4. The PAW1101-V model is able to manage an alarm zone - driven by a single amplifier - remote microphone stations and controlled inputs to be connected to a fire control unit.

FUNCTIONAL CHARACTERISTICS: Nominal audio power: 100 W. - 4.3” backlit display with touch screen for selecting alert and evacuation zones and navigation for level adjustment, device configuration, fault display. - VVF handheld microphone. -Sending pre-recorded EVACUATION and ALERT messages. - No. 4 supervised input contacts, configurable for the reproduction of evacuation and/or alert messages on programmed areas, for the reset of messages and the reporting of external equipment failure. - no.1 auxiliary input/music configurable as a music source, call with prior activation or call with automatic activation (VOX). - 2 configurable relay outputs. - Local button for emergency installation of the system with relative LED light. - Local button to reset the acoustic fault indicator and to play alarm messages. - EN54-4 certified internal charger unit for 24Vcc secondary power supply. - Possibility to connect up to 4 PMB Series broadcast microphone stations or, alternatively, up to 2 PMB132 Series emergency stations
