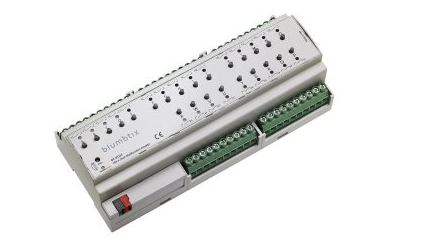

BLUMOTIX BX-RO24 12/24 Channel M-DIN Multifunction Actuator (16A)

12/24 Channel M-DIN Multifunction Actuator (16A)

Multifunction actuator M-DIN 12/24 channels (16A) The BX-RO24 is a versatile actuator with 24 channels, DIN rail mountable, which allows to control the switching of loads by contact closure. It has 230 Vac outputs controllable by front buttons with status LEDs. 16 A bistable relays, connected directly to the terminals without phase sharing, handle inductive loads up to 320 A inrush current.

The actuator offers advanced features such as status notifications, locking commands, timings and delays. It can manage shutters, venetian blinds, valves with PWM algorithms and Fancoil devices. Configurable logic functions with per-channel inputs allow custom operations through logic gates. The outputs can be parameterised individually via ETS.

Thanks to its versatility, the BX-RO24 is ideal for distribution in homes and commercial environments, allowing multiple functions in a single module and adapting to different control needs.
