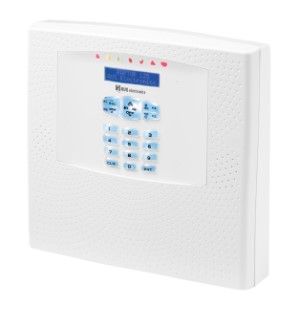

AVS ELECTRONICS 1102105 RAPTOR RK 125-zone bidirectional radio control unit with keyboard and LCD display - 220 Vac power supply

Same features as the RAPTOR RT control unit, with integrated silicone keypad and LCD display

- GFSK FM 868 Mhz bidirectional radio technology with:

- automatic frequency change (AFC)

- automatic power reduction (ALP)

- dynamic transmission management (DPT)

- remote sensor settings (RDS)

- remote control feedback and system status query

- Keyboard integrated in the center

- Radio-configurable zones: up to 125

- 2 NC, NO, balanced 1R/2R wire inputs, alarm switches, inertial, up to 10 with serial expansion

- Zone mapping function

- Expansion of zones and outputs on RS485 BUS

- Area/sectors: 8 with 4 ignition modes each + 64 scenarios

- Siren integrated in the control unit

- Connectable radio sirens: up to 2 WS 4 sirens

- Connectable RS 485 serial sirens: up to 8 HP sirens

- Outputs: 1 free exchange relay, 2 Open Collectors in the control unit up to 10 with serial expansion

- Connectable radio keyboards: up to No. 8

- Connectable wired keyboards: up to No. 7 of the ICE range, A500

- Proximity readers: integrated in the center, up to 7 with compatible keyboards

- Codes and keys: 125 user codes, 125 emergency codes, 125 remote controls, 125 proximity tags/badges

- System programming: from the keyboard or with XWIN software - USB port for system configuration and firmware update

- In the Cloud with APP MY AVS MANAGER

- RS485 serial buses: No. 1 supervised RS485 bus

- Integrated GSM/GPRS communicator: sending and receiving SMS, digital protocols, voice messages up to 16 telephone numbers and APP connection via GPRS

- GSM/GPRS communicator on RS485 bus: XGSM485/PRO

- PSTN telephone communicator: optional

- TCP-IP ETHERNET network module, WEB SERVER and MYAVSALARM App: optional EWEB PLUS B, EWEB WiFi B

- Integrated speech synthesis and audio output with more than 300 customizable words. The guided HELP available centrally on the ICE, A500 PLUS, A600 EVO PLUS keyboards and in RTC connection allows the management of the system through voice messages

- Integrated time programmer with 16 daily functions and holiday management

- Memory: 500 events

- Power supply: Switching 14.5 Vdc 1 A Battery 12 Vdc 2.3 Ah

- ABS enclosure dimensions (LxHxD): 247 x 232 x 55 mm
