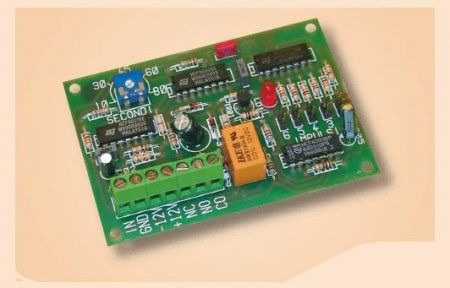

VIMO C1CIT001 12Vcc timed pulse meter board

12Vcc timed pulse counter card

The C1CIT001 timed pulse counter card is necessary

in security systems where shock-type detectors and related analyzers are used subject to

severe environmental disorders, such as strong vibrations in a relatively short time (10 sec), or random ones that cause false alarms. For this purpose, it receives the outgoing NO contact from the analyzer board of the above-mentioned detectors, counts the number of closures that the latter sends it and, at the end of the programmed counting (from 2 to 6 pulses), it returns an impulsive alarm signal to the main control unit. The verification time of each control cycle is activated at the first pulse and is adjustable using a trimmer. If the end of the count is not reached, at the end of the timer, the device resets, ready for a new control cycle. An LED displays the pulse towards the power plant.
