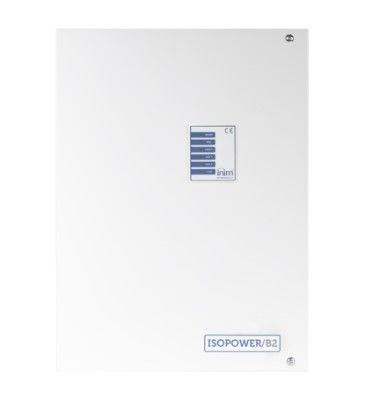

INIM ISOPOWER/B2 13.8V @2 + 1.2A BUS power station for battery charging

13.8V @2 + 1.2A BUS power station for recharging batteries. Metal enclosure (27.5 x 37.4 x 8.6 cm) for housing up to two 12Vcc @7Ah batteries. Integrated bus isolator. 3 O.C. outputs. 2 AUX terminals controlled by the control panel. 6 signal LEDs. EN50131-6/3 IMQ certification. Only for PRIME control units (FW 3.10 or higher).

ISOPOWER is the auxiliary power station designed to meet the needs of complex anti-theft systems or systems consisting of numerous installations, strengthening their capacities. A fully integrated solution with BUS connection to the anti-intrusion control panel that allows complete and constant supervision of the station itself and of the individual internal elements. The device provides a BUS isolator to protect against possible malfunctions, and the two sections, from the control unit and in the direction of the field, are galvanically isolated. 2 12V auxiliary power terminals controlled by central events, 1 fixed 12V terminal, 3 open-collector terminals for reporting faults to external devices, front panel with 6 signaling LEDs: ISOPOWER is equipped with the most advanced functions and technologies to obtain maximum reliability of the alarm system.
