16 In NVR, H.265, max 8MP, 144Mbps, no POE, no I/O

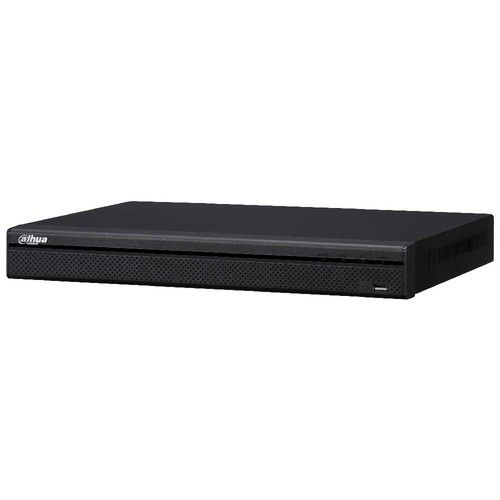

SKILLEYE SEN-K161440S1 16 In NVR, H.265, max 8MP, 144Mbps, no POE, no I/O

MT Code: SKL_SEN-K161440S1
Manufacturer Code: SEN-K161440S1
Brand: SKILLEYE

TKH SkilEye 16-channel NVR, Embedded LINUX, max 8MP resolution, max 160Mbps total input, H.264/H.265 High Profile, Dual Streaming Recording, HDMI (4K) /VGA (FullHD), 2 x USB 2.0, 1In/1Out Audio + audio input support on board IP Camera, no on-board I/O, on-board IP Camera I/O support. Dewarp Fisheye support via Web Client and Mobile App. FACE Detection and ADVANCED VCA 1.0 function on 2 on-board video channels, Statistical Data Processing. 1x 10/100/1000Mbps RJ45 Ethernet network card, Comp

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002745369
Codice Produttore	SEN-K161440S1
Brand	SKILLEYE
Ingressi IP	16
Risoluzione Massima	8MP
Bandwidth Ingresso	160	Mbps
Compressione Video	H.264/H.265
Allarmi I/O a bordo	no
Audio I/O a bordo	1/1, HDMI Output
Max HDD SATA	1, max 10TB
Porte LAN	1
Porte POE	no
Installazione Rack	no
Fanless	sì
Dewarping Fisheye	sì
Face Recognition	no
VCA 1.0 a bordo	sì	2 canali
Alimentazione	12VDC/10W
