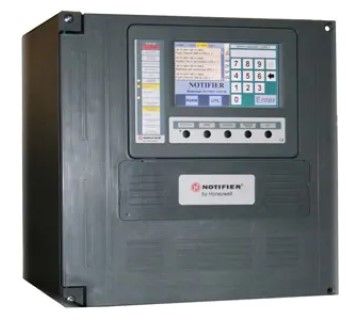

NOTIFIER AM-8000.2 Modular fire detection unit with 2 loops

Modular fire detection unit with 2 loops ADV expandable to 4. Certified in accordance with EN 54-2 - EN 54-4 and EN 54-13 System Certification- which allows the management of 159 detectors and 159 addressable modules for each loop through the new Advanced protocol. Compatible with the entire series of addressable sensors and modules. The base system has 2 addressable loops and is designed for the installation of an additional board model LIB-8000- that allows you to expand the control unit up to 4 loops. Finally, it is possible to further expand the loops - up to 32 - through a closed loop connection - in compliance with EN 54 - of a maximum of 7 other boxes model BB-8000- with 2 or 4 loops each. Along the ring between the boxes it is possible to have up to 8 LCD displays with a touch screen model LCD-8000-L as a network interface to the user. These displays can be mounted both on the front of the individual boxes and externally. Additional LCD repeat displays with a touch screen model LCD-8000 can then be connected to the single Box for viewing local events. Each Box in the network is equipped with a CPR certified power supply and backup batteries in accordance with EN 54-4.
