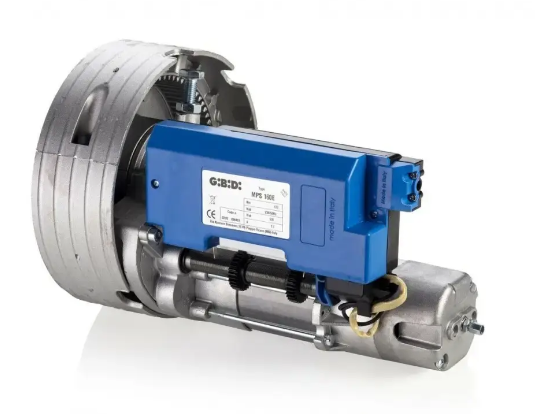

GIBIDI MPS160E-2013 230 Vac Gear Motor For Shutters

GIBIDI MPS160E-2013 230 Vac Gear Motor For Shutters

MT Code
GBD_MPS160E-2013
Manufacturer Code
MPS160E-2013
Brand
GIBIDI
Satel open day
Description
EASY TO INSTALL
Thanks to the assembly kit, the adapters and the cable always supplied
.

QUIET AND FAST
Made exclusively from high quality materials
.

TECHNOLOGICAL AND SAFE Window
adjustment system tied to the reducer for precise and lasting adjustment. Protected electrical connections
.

A COMPLETE AND RELIABLE RANGE
With or without electric brake, single or bi-motor, a complete range for every need
.

Motor supply: 230 Vac - 50/60 Hz
Absorbed power: 630 W
Absorbed current: 2.7 A
Max. torque: 170 Nm
Number of revolutions: 10 Number
of end-stroke revolutions: 6 Electric brake:
NO (YES in version E) Damper shaft diameter:
200/220 mm Crown: 60 mm Lifting capacity:
170 Kg Thermal time:
4
min Operator weight: 7 Kg (8 Kg
in version E)
Data Sheet
Codice Produttore MPS160E-2013
Brand GIBIDI
