FAAC 10561644 Tilting Garage Door Automation 2.7m 550 ITT SOLID KIT 230V SAFE

Tilting Garage Door Automation 2.7m 550 ITT SOLID KIT 230V SAFE

Basic kit for the automation of overhead garage doors. Excellent quality kit, powerful and quiet, a very important factor for garage door automation. FAAC 550 ITT motor, for swings suitable for a maximum width of 2.7 m and a maximum weight of 10 kg per square meter, equipped with an electronic control unit, model FAAC E550 with integrated safety encoder and micro switch window. Robust internal mechanics, totally made of metal, all to guarantee the FAAC brand. Internal emergency unlocking system with hexagonal key, designed for external emergency unlocking with a personalized key.

TECHNICAL CHARACTERISTICS: Power supply 230V~ 50Hz Absorbed power W 350 Absorbed current A 1.5 Max torque 2 m 50 Nm 300 N Starting capacitor 10µF 400 Thermoprotection 140 °C Number of motor revolutions 1400 g/mi Reduction ratio 1:700 Angular speed 8 c °/sec Frequency of use S3 30% cycles/hour 20 (without running end) 30 (with end of stroke) Ambient temperature -20°C/+55°C Maximum door height (m) 3 Maximum weight door 10 Kg/m2 Operator weight 7.5 Kg Degree of protection IP31 — IP44 (without equipment)

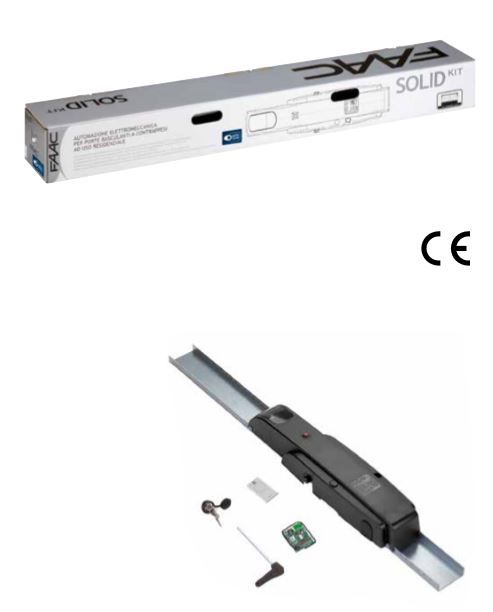

The package includes: 1 550 ITT electromechanical actuator with built-in electronic equipment and encoder 110549 1 1.3 m fixing rod including 1 external unlock with customized keys 424550001 1 plug-in receiver 1 RP 433 SLH 787852 1 XT2 433 SLH LR 787007 2-channel transmitter 1 FAAC automatic sign 1 safety certifications, instructions and user and maintenance manual
