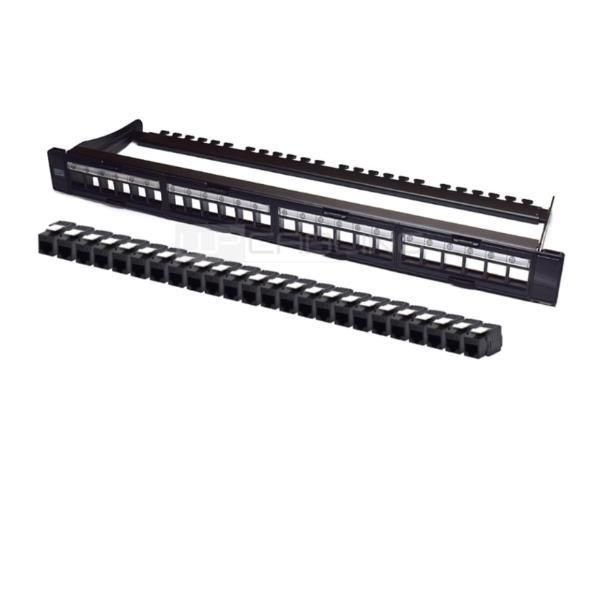

WP RACK WPC-PAN-6UP-24 24 PORT RJ45 CAT 6 UTP TOOLLESS MODULAR PATCH PANEL, 1U

The UTP modular Patch Panel from WP CABLING Professional have been designed to facilitate a technical intervention on the keystone jacks even after the installation thanks to the removable modules from the front. It is divided into four 6-ports modules for a total of 24 ports. A removable rear management tray with purposely designed cable tie positions, is supplied with each panel which is fitted without the need for any tools or fixings by simply snapping it into place.

The kit includes 1 patch panel and 24 Keystone Modules from WP CABLING Professional with tool less installation. This is one of the simplest methods of providing a high level of repeatable quality of fast termination. Termination is a quick and simple three stage process, prepare and position the pairs from each cable within the color-coded termination cap, once in place the termination cap is snapped onto the IDC block.

•Transmission properties: Category 6

•Area of application: Up to 250 MHz, 10/100Base-T, 1GBase-T

•Norms: ISO/IEC 11801:2002/Amd.2:2010, ISO/IEC 60603-7, ANSI/TIA 568-C.2, YD/T 926.3-2009;

•24 Keystone RJ45 female, 8P8C

•Cable fixing with included cable tie

•Tool-free installation

•RJ45 female material: ABS UL 94V-0

•Conductor plate: FR4, 1.2mm

•Operation temperature: -40° C to +68 °C

•Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

•Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

•IDC wire size: 22 – 26 AWG solid and stranded conductor
