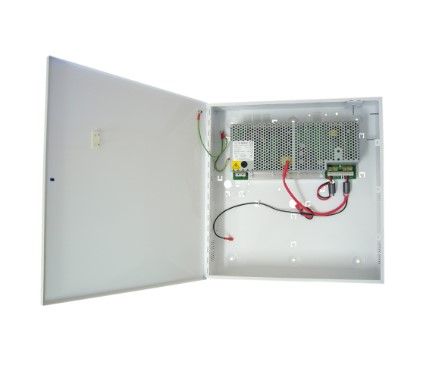

ARITECH FIRE PM702C 24Vcc - 2A+0.8A emergency power supply for battery charging
- MT Code
- ARI_PM702C
- Manufacturer Code
- PM702C
- Brand
- ARITECH FIRE
24Vcc emergency power supply - 2A+0.8A for battery recharge. in metal case. Internal space for housing 2 12V-15Ah type BS131 batteries (not supplied). It has 2 relay outputs for separate notification of network failure or fault. Internal and external signal LEDs to indicate service status and any faults. CPD approval in compliance with EN54 p.te 4
The PM702C power supply is EN54 approved and represents the ideal power source in fire fighting systems. The battery charger, the monitoring and the returned reports have intelligent features. The load output provides a voltage of 27.6 Vcc and a maximum current of 2A; the power supply also provides a maximum current of 0.8 A available for recharging the batteries.
The load output is electronically protected from short circuit both when PM702C is operating through the 230Vac network and when the power supply is working through batteries. The maximum life of the batteries is ensured through continuous active monitoring of the batteries and three different levels of charging: fast, absorption and temperature-compensated. The power supply electronics include a protection function that prevents batteries from discharging excessively in the absence of the 230Vac network and with a connected load, thus avoiding a possible failure of the batteries themselves.
Inside the unit there is a diagnostic LED useful in the event of a fault; this LED flashes differently depending on the problem that is occurring.
Codice Produttore | PM702C |
---|---|
Brand | ARITECH FIRE |
