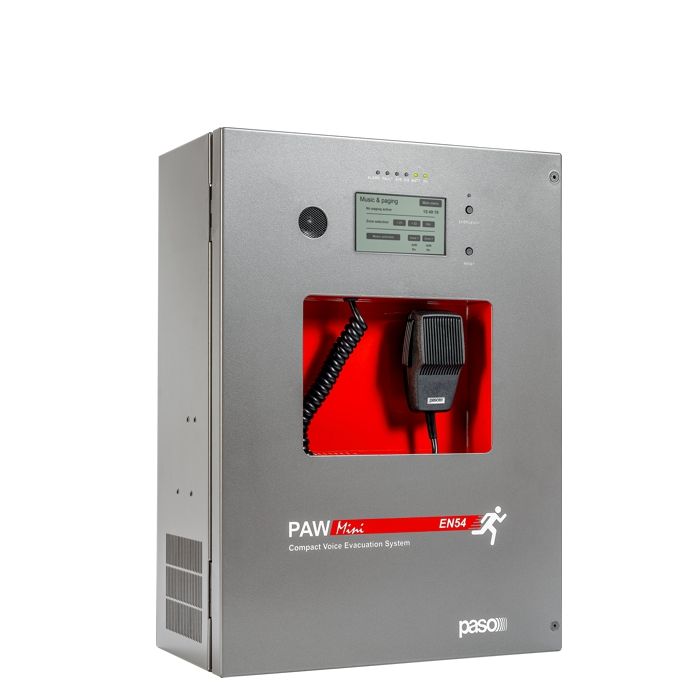

PASO PAW2251-V 250W 1CH EN54 Compact System

250W 1CH EN54 Compact System

The new PAW Mini range, integrated “light” voice evacuation systems for emergency systems series, has been specially designed for wall mounting and is equipped with a certified control unit in compliance with EN 54-16:2008 and EN 54-4. These compact all-in-one systems are able to manage - depending on the model - 1 or 2 alarm zones with a total power of 100 or 250 W, as well as remote microphone stations and controlled inputs to be connected to a fire control unit.

Functional characteristics: Nominal audio power/managed zones: see above 4.3” backlit display with touch screen for selecting alert and evacuation zones and navigation for level adjustment, device configuration, fault display. VVF handheld microphone on the front panel (included). Sending pre-recorded EVACUATION and ALERT messages. No. 4 supervised input contacts, configurable for the reproduction of evacuation and/or alert messages on programmed areas, for the reset of messages and the reporting of external equipment failure. No. 1 auxiliary input/music configurable as a music source, call with prior activation or call with automatic activation (VOX). 2 configurable relay outputs. Local button for the emergency setting of the system with relative LED light. Local button to reset the acoustic fault indicator and to play alarm messages. EN54-4 certified internal battery charger unit for 24Vcc secondary power supply. Possibility to connect up to 4 PMB Series broadcast microphone stations or, alternatively, up to 2 PMB132 Series emergency stations. Optional extension card to be able to make a general call on all connected devices or to have an additional music input (only PAW2101-V, PAW2102-V, PAW2251-V and PAW2252-V models). Possibility to use a backup amplifier (PAW2102-V and PAW2252-V models only).
