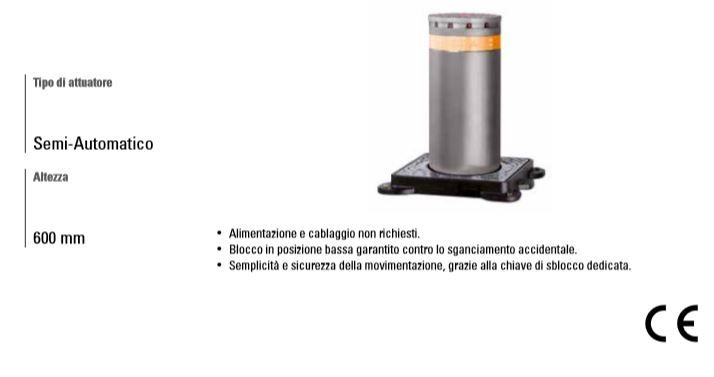

FAAC 116060 275H600 SEMI-AUTOMATIC STAINLESS STEEL BOLLARD

MT Code: FAA_116060
Manufacturer Code: 116060
Brand: FAAC

Description

275H600 SEMI-AUTOMATIC STAINLESS STEEL BOLLARD

Actuator type: Semi-Automatic

No power and wiring required.

-Locking in the low position guaranteed against accidental release. -Simplicity and safety of movement, thanks to the dedicated unlock key.

Packaging: AISI 316L stainless steel cylinder with satin treatment Corona flasher with LED lights mechanical lock in a high position with special unlock key (No. 2 unlocking keys supplied with the kit)

TECHNICAL CHARACTERISTICS: Actuator type: Single-acting gas actuator Cylinder height above ground: 600 mm Cylinder diameter: 275 mm Cylinder treatment type: Satin finish Reflective band height: 55 mm Standard reflective band color: Orange Unlocking device: Keyed (supplied) Impact resistance: 67,000 J Crash resistance: 207,000 J Cockpit weight: 55 Kg Bollard weight: 70 Kg Load class (EN 124): C250 (25t)

Data Sheet
