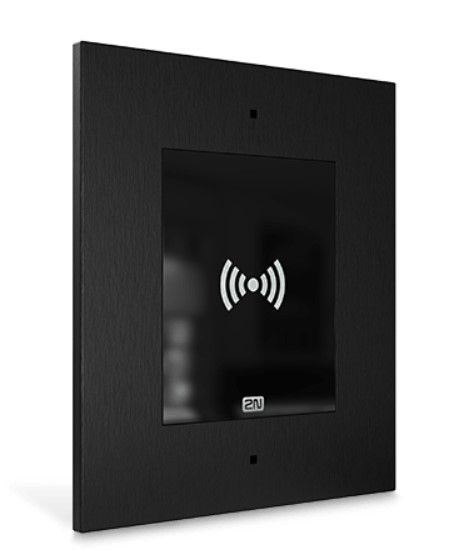

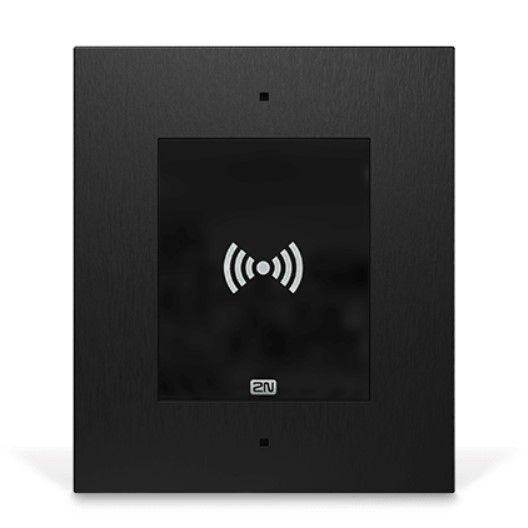

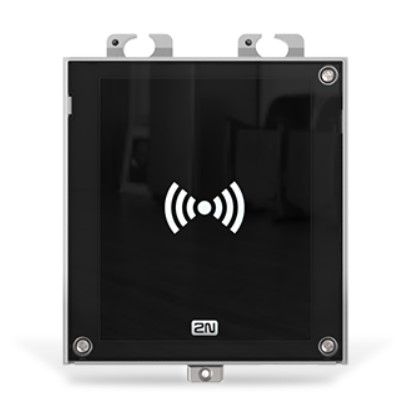

9160341US 2N Access Unit 2.0 - 125kHz US (reads HID Prox)
- MT Code
- 2NN_9160341US
- Manufacturer Code
- 9160341US
- Brand
- 2N
Description
Do you have a project for modernising a house, including the access control? Do you want to remove the old controllers, simplify administration and at the same time allow residents to keep their old cards? Select our RFID reader for cards on a frequency of 125 kHz. You only need a UTP cable to connect it to the network and power supply. Forget about connecting with the controller. The unit is a smart device in its own right.
Data Sheet
| Feature | Value | Unit of measure |
|---|---|---|
| Codice a barre | 8000002703079 | |
| Codice Produttore | 9160341US | |
| Brand | 2N | |
| Tipo di dispositivo | 2N Access Unit 2.0 RFID | |
| Frequenza RFID | 125 | kHz |
| Supporto schede | legge HID Prox | |
| Interfaccia LAN | 10/100BASE-TX with Auto-MDIX, RJ-45 connector | |
| Cablaggio consigliato | Cat-5e o superiore | |
| Uscita attiva interruttore | 8 - 12V DC/max 600mA | |
| Interruttore passivo | NO/NC contatti di commutazione, fino a 30 V/1 A AC/DC | |
| Entrate | 2 entrate in modalità passiva/attiva (da -30V a +30V DC) | |
| Alimentazione PoE | 802.3af (Classe 0–12.95W) | |
| Alimentazione DC | 12V/1A DC | |
| Protezione IP | IP54 | |
| Durata IK | IK08 | |
| Temperatura d'esercizio | -40°C a +60°C | °C |
Related Products
- Variant 9160341 Versione standard 2N Access Unit 2.0 RFID 125kHz senza specifica HID Prox.
- Variant 9160342 Versione 2N Access Unit 2.0 RFID 13.56MHz, NFC.
- Variant 9160342-S Versione 2N Access Unit 2.0 RFID protetto 13,56 MHz (legge HID SEOS), NFC.
- Accessory 9155011 1 modulo cornice a filo nichel/nero.
- Accessory 9155021 1 modulo cornice superficie nichel/nero.
