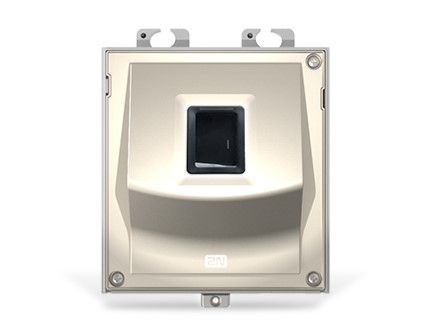

916031 2N Access Unit 2.0 - Fingerprint reader

The 2N Access Unit 2.0 Fingerprint Reader (916031) is an access control system equipped with a biometric fingerprint reader, designed to ensure high security and uncompromising ease of use.

Technical characteristics

This device uses a touch optical sensor for reading fingerprints, with a sensor surface protected by tempered glass to ensure maximum durability and resistance.

Sensor and Fingerprint Reading

• Sensor: Optical touch sensor
• Sensor surface: Protected by tempered glass
• False fingerprint detection: Yes
• Fingerprint reading surface: 15.24 x 20.32 mm

Indicators and Environmental Resistance

• Indicators: Use of multicolored LEDs for indications
• Resistance: Resistant to moisture and dust
• Ambient light suppression: It also works in direct sunlight
• Operating temperature: -20°C ~ 55°C

Certifications and Dimensions

• Certification: FBI PIV
• Dimensions: 99 (W) x 123 (H) x 47 (D) mm

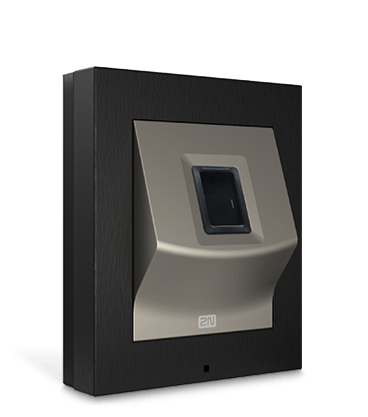

• Surface mount frame dimensions: 107 (W) x 130 (H) x 28 (D) mm (add 18 (D) mm for the 916031 unit)

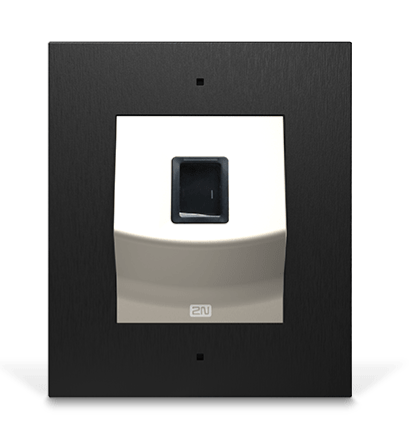

• Dimensions of the frame for recessed wall mounting: 130 (W) x 153 (H) x 5 (D) mm (add 18 (D) mm for unit 916031)
• Minimum hole dimensions in the wall for mounting: 108 (W) x 131 (H) x 45 (D) mm
• Net Weight: 0.40kg
• Gross weight: 0.45kg

This device is ideal for applications that require a high level of security and authentication, ensuring precise and rapid identification of users.
