9161151 2N Bluetooth & RFID Access Unit M - 125KHz, 13.56M

MT Code: 2NN_9161151
Manufacturer Code: 9161151
Brand: 2N

2N 9161151 Product Description

The 2N Access Unit M, code 9161151, is an access control device designed to ensure safe and efficient management of building access. This device is ideal for being integrated into existing access control systems or for creating a complete access control solution.

Technical characteristics

The 2N Access Unit M is a mullion style access reader, characterized by a combination of multiple identification technologies.

Identification Methods: Proximity, RFID at 125KHz and 13.56MHz, as well as NFC.
Connectivity: Supports Bluetooth connectivity, allowing for reliable wireless communication.
Design and Dimensions: The device is designed to be mounted on millions, with an approximate weight of 500 grams.

Integration and Compatibility

This device has been designed to work transparently with the entire range of 2N products, as well as with third-party technologies, facilitating integration into existing access control systems.

Its compatibility with different platforms makes it a versatile choice for various environments, from condos to commercial buildings.

Data Sheet

Codice a barre	8000002703109
Codice Produttore	9161151
Brand	2N
Alimentazione	PoE e/o 12V/1A DC
Standard PoE	802.3af (Classe 0–12.95W)

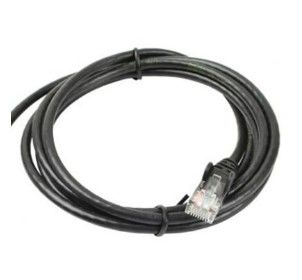

Interfaccia LAN	10/100BASE-TX con Auto-MDIX; RJ-45 male (2,9m pigtail)
Cablaggio consigliato	Cat-5e o superiore
Uscita attiva dell'interruttore	8 - 12V DC/max 600mA
Interruttore passivo	NO/NC contatti di commutazione, fino a 30 V/1 A AC/DC
Ingressi	2 ingressi (da -30V a + 30V DC)
Versione Bluetooth	compatibile con Bluetooth 5.0 LE
Portata Bluetooth	regolabile (corta ~ 3m, da remoto ~ fino a 10m) m
Frequenze RFID supportate	125 kHz e 13.56 MHz kHz / MHz
Temperatura di esercizio	-40 a +60 °C
Dimensioni	50 x 133 x 27 mm
Peso	0.5 kg
Grado di protezione IP	IP54
Grado di protezione IK	IK07
