9138511 2N ETHERNET CLIP 4 ANSWERING UNIT
- MT Code
- 2NN_9138511
- Manufacturer Code
- 9138511
- Brand
- 2N

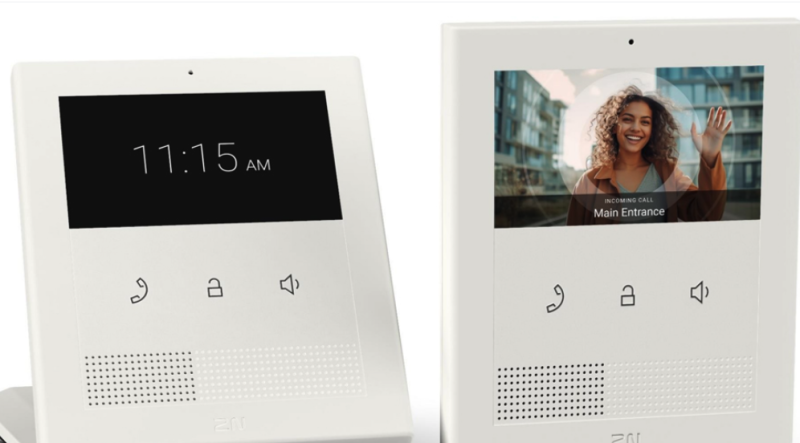

The 2N Clip, identified with the code 9138511, is a 4-inch IP video intercom station designed to meet the growing demand for more affordable housing solutions.
Key Features
This device is fully compatible with the entire range of 2N IP Intercom products and with VoIP phones.
Power and Connectivity
The unit is powered via PoE (802.3af Class 0, 48 V DC, 200 mA) and has a 10/100BaseT LAN connection through an RJ-45 connector. The use of CAT5e or higher cables is recommended.
Audio and Video
The 2N Clip is equipped with a microphone and a built-in 2W speaker. It supports G.711a/u, G.722, G.729, and L16/16 kHz audio codecs.
Display
The display measures 4.3 inches with a resolution of 480x272 pixels.
Operating Conditions
The unit can operate in a temperature range from 0 to 50°C and can be stored in a range from -20 to 70°C. The operating relative humidity is between 10% and 90% (non-condensing), and the device is recommended for an altitude of up to 2000 meters.
Dimensions and Weight
The dimensions of the device are 124 mm (width) x 150 mm (height) x 28 mm (depth), with a net weight of 0.25 kg and a gross weight of 0.50 kg.
Other Features
- Perfect integration with the 2N IP Intercom product range.
- Compatibility with VoIP phones.
- Compact design and easy to install.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice a barre | 8000002744584 | |
| Codice Produttore | 9138511 | |
| Brand | 2N | |
| Dimensioni del display | 4,3 | pollici |
| Risoluzione dello schermo | 480x272 | pixel |
| Controlli | 3 pulsanti capacitivi | |
| Alimentazione elettrica | PoE (Power over Ethernet) 802.3af Classe 0, 48V DC, 200 mA | |
| Microfono | integrato | |
| Altoparlante | integrato, 2W/8 | |
| Codec audio | G.711a/u, G.722, G.729, L16/16 kHz | |
| Codec video | H.264 | |
| Interfaccia LAN | 10/100BaseT, RJ-45 | |
| Cablaggio consigliato | Cat5e o superiore | |
| Tipo di ingresso campanello interno | contatto di commutazione (pulsante/relè) | |
| Tipo di contatto | normalmente aperto (NO) | |
| Parametri di contatto | 12V/20mA, DC | |
| Temperatura di esercizio | da 0 a 50 | °C |
| Temperatura di conservazione | da -20 a 70 | °C |
| Umidità relativa di esercizio | da 10 a 90 | % |
| Altitudine consigliata | da 0 a 2000 | m |
| Dimensioni (L x A x P) | 124 x 150 x 28 | mm |
| Peso | 235 | g |
