91378601WH 2N Indoor View - White
- MT Code
- 2NN_91378601WH
- Manufacturer Code
- 91378601WH
- Brand
- 2N

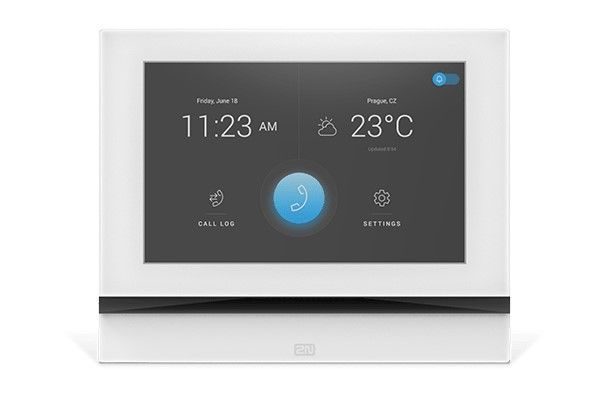

The 2N Indoor View, code 91378601WH, is an intercom response unit with a series of features that make it ideal for luxury residential projects.
Design and Display
The unit features a 7-inch touchscreen display with a wide viewing angle, covered in tempered glass. The elegant, award-winning design integrates perfectly into any luxurious environment.
Installation and Configuration
Installing the device requires only a UTP cable and an installation box. 2N's customized operating system ensures reliable operation and simple configuration.
Feeding
The unit can be powered via PoE (802.3af) or with a 12 V/1 A DC power supply, with protection against reverse polarity.
User Interface
The user interface consists of a capacitive touch panel. The unit also includes 3 status LED indicators and a reset button to restore factory settings.
Audio and Video
- Built-in microphone.
- Built-in 2W speaker
- 600 mV RMS loop induction output.
- Audio codec: G.711, G.722, G.729, L16/16 kHz.
- 7-inch display with 1024 x 600 px or 640 x 480 px resolution.
- Video codec: H.264, MJPEG.
Connectivity
- 10/100BaseT, RJ-45 LAN connectivity.
- Recommended cables: CAT5e or higher.
- Doorbell input: switching contact (button/relay), normally open type (NO), up to 50V/5mA DC.
Mechanical Properties
- Operating temperature: 0°C to 50°C.
- Storage temperature: -20°C to 70°C.
- Operating relative humidity: 10% to 90% (non-condensing).
- Recommended altitude: 0 to 2000 m.
- Dimensions (W x H x D): 193 x 157 x 50 mm.
- Net weight: 555g.
The 2N Indoor View offers full-screen video calls, making it easy to read details such as the name on a courier's badge. In addition, the home screen displays current weather forecasts, adding a touch of convenience to everyday use.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 91378601WH | |
| Brand | 2N | |
| Tipo di alimentazione | adattatore 12V DC o PoE 802.3af | |
| Alimentazione consigliata | 12 V/1 A | V / A |
| Protezione contro l'inversione di polarità | sì | |
| Comandi | display touch capacitivi | |
| Dimensioni del display | 7 | pollici |
| Risoluzione del display | 1024x600 | px |
| Microfono | integrato | |
| Altoparlante | integrato, 2W/8 | |
| Uscita del circuito di induzione | 600 mV RMS | mV RMS |
| Codec audio | G.711a/u, G.722, G.729, L16/16 kHz | |
| Codec video | H.264 | |
| LAN | 10/100BaseT, RJ-45 | |
| Cablaggio consigliato | Cat5e o superiore | |
| Tipo di ingresso campanello interno | contatto di commutazione (tasto/relè) | |
| Tipo di contatto campanello interno | normalmente aperto (NO) | |
| Parametri di contatto campanello interno | fino a 50 V/5 mA, DC | V / mA |
| Dimensioni (L x A x P) | 193 x 157 x 50 | mm |
| Peso | 555 | g |
| Temperatura di esercizio | da 0 a 50 | °C |
| Umidità relativa di esercizio | da 10 a 90 | % |
| Temperatura di funzionamento / stoccaggio | da -20 a 70 | °C |
| Altitudine sul livello del mare consigliata | da 0 a 2000 | m |
| Variante di colore | bianco |
- Variant 91378601 Versione identica ma con finitura in colore nero.
- Variant 91378611WH Versione bianca dotata in aggiunta di connettività Wi-Fi.
- Variant 91378611 Versione nera dotata di connettività Wi-Fi.
- Accessory 91378800 Scatola per installazione a incasso (2N Indoor Flush Box).
- Accessory 91378803 Scatola di montaggio in superficie (2N Indoor Surface Box, solo colore nero).
- Accessory 91378802 Supporto da scrivania/tavolo (2N Indoor Desk Stand, solo colore nero).
