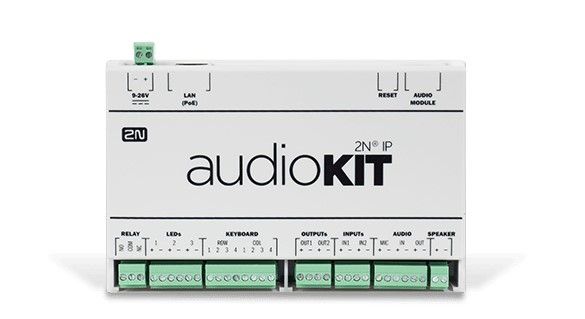

9154100 2N IP Audio Kit - 1x LAN-PoE
- MT Code
- 2NN_9154100
- Manufacturer Code
- 9154100
- Brand
- 2N
The 2N IP Audio Kit 9154100 is an OEM intercom module designed to be integrated into a variety of devices, such as parking systems, information panels, industrial equipment, and cash machines. This kit is designed to add value to both audio communication and surveillance and remote control.
Key Features
The kit allows you to offer live support and the ability to request advice with a simple touch of a button, significantly improving the user experience.
Interface and Connectivity
The module is equipped with a series of interfaces that allow the easy connection of buttons, keyboard, signal LEDs, microphone and speaker, as well as headphones. In addition, there are universal input and output jacks to control devices such as lights or entrance gates.
Protocol and Compatibility
The communication takes place through the SIP 2.0 protocol, standard for VoIP telephony, allowing you to take advantage of low-cost calls via the Internet or the connection through an IP PBX. The kit is compatible with PBX systems from leading global manufacturers.
Power and Amplification
The module is powered via PoE (Power over Ethernet) and includes a powerful 10W amplifier, ensuring excellent audio quality.
Applications
- Parking systems
- Information panels
- Industrial equipment
- ATM machines
- Surveillance and remote control systems
The 2N IP Audio Kit 9154100 is a versatile and robust solution, ideal for those looking to integrate audio communication and remote control functionality into their devices.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 9154100 | |
| Brand | 2N | |
| Protocollo di segnalazione | SIP 2.0 (UDP) | |
| Stream audio | RTP/RTSP | |
| Codec audio | G.711 | |
| Full duplex | Sì | |
| Alimentazione esterna | 12 | V |
| Corrente massima alimentazione esterna | 2 | A |
| Standard PoE | 802.3af (Class 0–12.95 W) | |
| Interfacce LAN | 1 | |
| Parametri LAN | 10/100BASE-TX con funzione Auto-MDIX, RJ-45 | |
| Cablaggio consigliato | Cavo di rame CAT5 | |
| Protocolli supportati | SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog | |
| Ingresso microfono | microfono electret comune | |
| Amplificatore output | Max. 10W/4: Max. 5W/8: Max. 2.5W/16 | W |
| Uscita di lineout | 600 | Ω |
| Numero di pulsanti | Fino a 16 pulsanti distinti in matrice 4x4 | |
| Numero di uscite digitali | 2 | |
| Tensione uscite digitali | 12 | V |
| Uscita dell'interruttore attivo | da 7 a 11 | V |
| Numero di ingressi logici | 2 | |
| Numero di uscite relè | 1 (NC, NO, COM connectors) | |
| Parametri limite relè | (DC) Max. 30VDC/1A, (AC) Max. 125VAC/0.3A | |
| Temperatura operativa | -40°C a 55°C | °C |
| Temperatura di stoccaggio | -40°C a 70°C | °C |
| Umidità relativa d'esercizio | 10 - 95 | % |
| Dimensioni | 142 x 98 x 34 | mm |
| Peso | max. 280 | g |
| Grado di protezione | IP20 | |
| Montaggio | a parete o su guida DIN |
