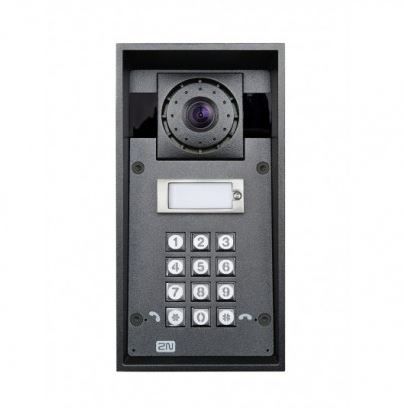

9151101CHKW 2N IP Force - 1 button & HD camera & keypad & 10W

9151101CHKW 2N IP Force - 1 button & HD camera & keypad & 10W

MT Code
2NN_9151101CHKW
Manufacturer Code
9151101CHKW
Brand
2N
Cyber Monday 2024
Description
<p/the 2N 9151101CHKW is an extremely robust and resistant IP intercom, designed to face even the most demanding conditions. This device is ideal for high-risk areas and requires anti-vandal protection, such as public access areas, prisons, apartment buildings, hospitals, universities, government offices, and parking lots.

Key Features

The 2N IP Force 9151101CHKW has a call button, a keyboard, an HD camera and a 10W speaker. The camera offers a resolution of 1280x720 pixels, a viewing angle of 135° horizontal and 109° vertical, and includes IR night vision.

Power and Connectivity

The intercom can be powered via PoE (802.3af) with 48V/380mA DC or through a 230V adapter with 12V DC/2A output. Connectivity is guaranteed by an RJ-45 Ethernet connector with a speed of 10/100 BASE-T.

VoIP Reporting and Codes

The device uses the SIP protocol for VoIP signaling and supports two voice channels. The supported audio codecs are G.711 and G.729, while the video codecs are H.264 (64~2048 kbit/s), H.263 and H.263+.

Interface and Outputs

The intercom includes two integrated microphones and a 10W D-Class amplifier with full-duplex (AEC) function. The relay outputs have a maximum voltage of 30V DC and a maximum current of 1A DC, while the active output is 9~13V DC/700mA.

Environmental Resistance and Tolerances
  • IP65 certification, with some versions that achieve IP69K certification.
  • Operating temperature from -40°C to +55°C.
  • Dimensions: 217 (H) x 109 (W) x 83 (D) mm, framed 242 (H) x 136 (W) x 83 (D) mm.
  • Net weight: 2.00 kg, gross weight: 2.27 kg.
Data Sheet
Codice Produttore 9151101CHKW
Brand 2N
