9152101MW 2N IP Safety - red emergency button & 10W speaker
- MT Code
- 2NN_9152101MW
- Manufacturer Code
- 9152101MW
- Brand
- 2N

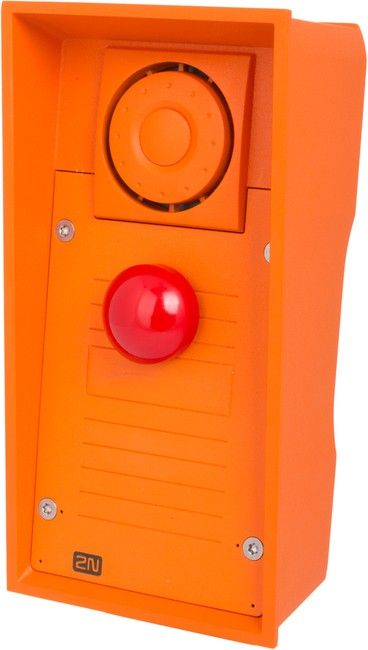

The 2N 9152101MW is a high-class security intercom, designed specifically for emergency communications. This device is ideal for extreme environments, as it remains fully functional even when exposed to heavy rain or temperatures of −40°C.
Strength and Durability
The 2N IP Safety is characterized by an IP69K protection level, which guarantees its resistance to dust, water and mechanical damage. This robustness makes it suitable for adverse environmental conditions and for rigorous handling.
Design and Visibility
The device design includes a vivid orange color and a backlit red emergency button, ensuring that it cannot be overlooked, even in low light or in smoky environments.
Acoustic Performance
The 2N IP Safety is equipped with two integrated microphones that reduce background noise, making it effective even in very noisy environments. In addition, it has a 10W speaker, which not only guarantees clear communication but can also be used as a speaker if necessary.
Key Features
- IP69K protection against dust, water and mechanical damage
- Functionality in extreme conditions (rain, −40°C)
- Backlit red emergency button
- Two built-in microphones for background noise reduction
- 10W speaker for clear communication and use as a speaker
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 9152101MW | |
| Brand | 2N | |
| Protocollo di segnalazione | SIP 2.0 (RFC - 3261) | |
| Tipo di pulsante | pulsante rosso di emergenza | |
| Numero di pulsanti | 1 | |
| Tastierino numerico | no | |
| Microfono | 2 microfoni integrati | |
| Potenza altoparlante | 10 | W |
| Pressione sonora | 94 | dB |
| Codec audio | G.711, G.729, G.722, L16/16kHz | |
| Alimentazione | 12V ± 15%/2A DC, o PoE | |
| Standard PoE | PoE 802.3af (classe 0 - 12.95W) | |
| Interfaccia LAN | RJ-45, 10/100BASE-TX con Auto-MDIX | |
| Interruttore passivo | contatti NC/NO, max. 30 V/1 A AC/DC | |
| Uscita attiva dell'interruttore | 9-13 V DC in base all'alimentazione (PoE: 9 V; adattatore: tensione di alimentazione meno 1 V), max. 700 mA | |
| Interruttore di manomissione | accessorio opzionale | |
| Protocolli supportati | SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF | |
| Peso | max. 2000 | g |
| Temperatura d'esercizio | da -40°C a 55°C | °C |
| Temperatura di funzionamento/stoccaggio | da -40°C a 70°C | °C |
| Umidità relativa d'esercizio | 10% - 95% | % |
| Dimensioni | 217 x 109 x 83 | mm |
| Grado di protezione | IP69K |
- Variant 9152101W 2N IP Safety con 1 pulsante standard e altoparlante da 10W
- Variant 9152102W 2N IP Safety con 2 pulsanti (INFO e SOS) e retroilluminazione blu
- Accessory 9152000 Telaio in metallo di ricambio di colore arancione per 2N IP Safety
- Accessory 9151010 Interruttore aggiuntivo e antimanomissione (relè di ingresso/uscita extra)
