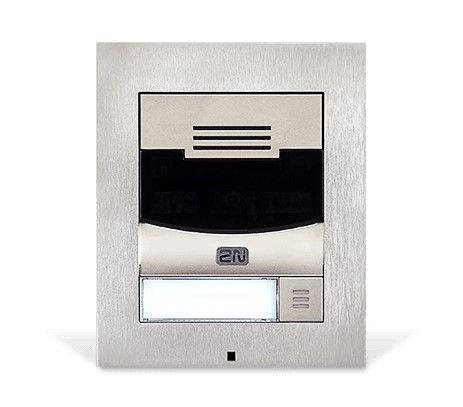

9155301F 2N IP Solo without camera- flush mount

MT Code: 2NN_9155301F
Manufacturer Code: 9155301F
Brand: 2N

Product Description 2N 9155301CF (Helios IP with Camera Only)

The 2N 9155301CF, also known as Helios IP Solo with camera, is a compact and versatile IP intercom, ideal for installation in entrances to smart homes or commercial environments. This device is designed to offer a combination of high-quality audio and video capabilities.

Key Features

This intercom features a single transparent button with white backlight and an easily removable label, ensuring an intuitive user experience.

Audio and Video

Built-in microphone for clear audio communication.
2W speaker with sound pressure measured at 1 kHz 1 meter away.
Supported audio codecs: G.711, G.722, G.729, L16/16kHz.
Camera with a resolution of 1280 x 960 pixels in JPEG format and 640 x 480 pixels for video calls.
Viewing angle: 120° horizontal, 90° vertical, 145° diagonal.
Night vision for continuous visibility even in low light.
Supported video codecs: H.263+, H.263, H.264, MJPEG.

Power and Connectivity

12V ± 15%/2A DC or PoE (Power over Ethernet) power supply according to the 802.3af standard (Class 0 - 12.95W).
LAN connectivity via screw connector, 10/100BASE-TX with auto-MDIX.

Supported Protocols

SIP 2.0 (RFC 3261).
DHCP option 66.
ONVIF.
SMTP.
802.1x.
RTSP, RTP, TFTP, HTTP, HTTPS, Syslog.

Strength and Dimensions

Resistance to dust and water ingress: IP54.
Vandal protection: IK08.
Nickel finish
Dimensions of the flush mounting frame: 130 (W) x 153 (H) x 5 (D) mm.
Net weight: 1.00 kg, gross weight: 1.30 kg.

Operating Temperature

Operation in a temperature range from -40°C to +60°C.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	9155301F
Brand	2N
Protocollo di segnalazione	SIP 2.0 (RFC - 3261)
Pulsanti di selezione rapida	pulsante trasparenti con retroilluminazione bianca ed etichetta con nome facilmente sostituibile
Numero di pulsanti	1
Microfono	1 microfono integrato
Altoparlante	2	W
Pressione sonora	78	dB
Codec audio	G.711, G.729, G.722, L16/16kHz
Alimentazione	12 V±15%/2 A DC o PoE
PoE	PoE 802.3af (classe 0 - 12.95W)
LAN	10/100BASE-TX con Auto-MDIX, RJ-45
Uscita dell'interruttore	contatti NC/NO, max. 30 V/1 A AC/DC
Uscita attiva dell'interruttore	8-12 V DC in base all'alimentazione (PoE: 10 V; adattatore: tensione di alimentazione meno 2 V), max. 400 mA
Interruttore di protezione	sì, integrato
Protocolli supportati	SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
Temperatura d'esercizio	-40°C – 60°C	°C
Grado di protezione	IP54, IK08
