9153101P 2N IP UNI - 1 button- pictograms

2N 9153101P Product Description

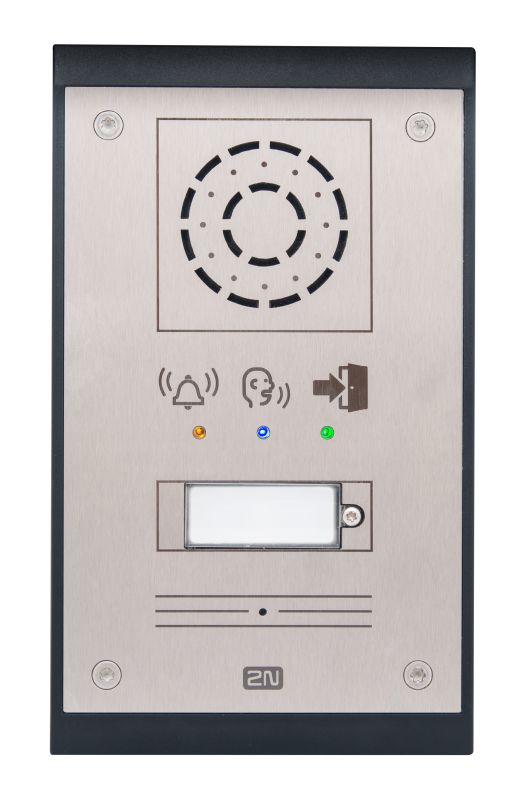

The 2N 9153101P is an IP communication panel for doors equipped with a button with pictograms, ideal for general purpose indoor and outdoor environments. This intercom is characterized by simple operation and an intuitive interface.

Technical characteristics

The device is equipped with a sensitive integrated microphone and a powerful 1 W speaker, ensuring bidirectional communication with acoustic echo cancellation. The button is fully backlit, making it easy to use even in low light conditions.

Protocols and Audio Codes

• SIP 2.0 support (RFC 3261)
• G.711 (PCMU and PCMA) and G.729 audio codes
• RTP audio protocol

Power and Connectivity

• Power supply: 12 V ± 15%/2 A DC or PoE (802.3af, Class 0 - 12.95 W)
• LAN connectivity: 10/100BASE-TX with Auto-MDIX, RJ-45
• Recommended CAT-5e cabling or higher

Interface and Switching

• Passive switch: NC/NO contacts, up to 30 V/1 A AC/DC
• Active output: 8 - 12 V DC/500 mA

Mechanical Properties

• ABS plastic cover
• Dimensions: 193 (H) x 115 (W) x 5 (D) mm (maximum)
• Net weight: 0.65 kg, gross weight: 0.86 kg
• Degree of protection IP54
• Operating temperature: -40°C - 55°C, storage temperature: -40°C - 70°C
• Storage relative humidity: 10% - 95% (non-condensing)

This intercom is designed to offer a reliable and easy to configure solution, thanks to the possibility of configuring via the web or through a dedicated PC application.
