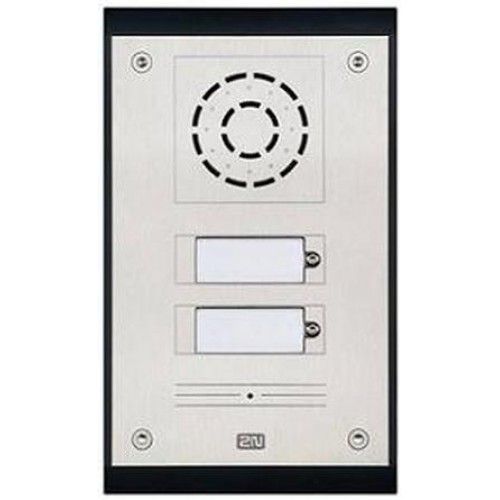

9153102 2N IP UNI - 2 buttons

MT Code: 2NN_9153102
Manufacturer Code: 9153102
Brand: 2N

<p/the 2N 9153102 IP Uni is an ideal solution for port communication, suitable for general-purpose outdoor and indoor environments. This IP intercom offers simple operation and an intuitive interface, making it easy to use even for less experienced users.

Key Features

IP intercom with 2 buttons for effective communication.
Designed for outdoor and indoor environments, ensuring robustness and resistance to adverse weather conditions.
Intuitive and easy to use user interface.
Integration with existing IP systems for greater flexibility and compatibility.

Technical Functionality

Support for standard communication protocols, ensuring a stable and reliable connection.
High audio quality for clear, interference-free communication.
Power supply via PoE (Power over Ethernet) for easier installation and reduced cabling.

Applications

Use in residential and commercial buildings for managing door communications.
Can be integrated with existing security and access control systems.
Suitable for environments with high security requirements, such as schools, hospitals, and government facilities.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	9153102
Brand	2N
Protocollo di segnalazione	SIP 2.0 (RFC - 3261)
Numero di pulsanti	2
Design pulsanti	Acciaio con tasti retroilluminati
Microfono	1 microfono incorporato
Potenza altoparlante	1	W
Pressione sonora	77.5	dB
Codec audio	G.711
Alimentazione	12V ± 15%/2A DC, or PoE
Standard PoE	PoE 802.3af (classe 0-12.95W)
Interfaccia LAN	RJ-45, 10/100BASE-TX con funzione Auto-MDIX
Interruttore passivo	contatti NC/NO, 30V, 1A, AC, DC
Uscita attiva dell'interruttore	8-12 V DC in base all'alimentazione, max. 500	mA
Interruttore di manomissione	sì, integrato
Protocolli supportati	SIP2.0, RTP, HTTP, HTTPS, Syslog
Temperatura d'esercizio	da -40 °C a 55 °C	°C
Grado di protezione	IP54, IK10
Dimensioni	193x115x57	mm
