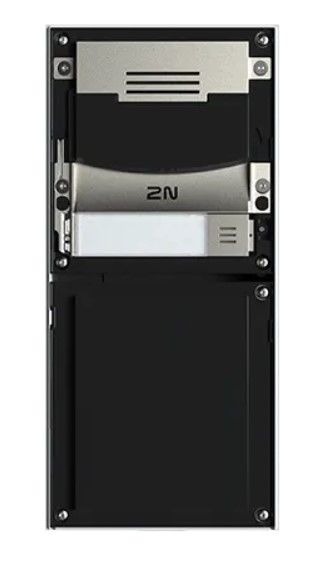

9155211C 2N IP Verso 2.0 Main unit with camera

The 2N 9155211C IP Verso 2.0 is the second generation of the world's best-selling IP intercom, featuring a wide-angle full-HD camera and a new ARTPEC-7 processor that supports innovative features.

Key Features

This intercom is designed to offer flexibility and modularity, allowing you to connect up to 30 different modules.

Camera and Image

The wide-angle full-HD camera guarantees exceptional image quality, with vivid colors and impeccable clarity.

Access Methods

The intercom supports a variety of access methods, including:

• Reading QR codes
• 13.56 MHz contactless card (ISO14443A, PicoPass, HID iClass, FeliCa, ST SR (IX))
• NFC (2N® Mobile Key)
• Reading MIFARE® DESFire® EV2/EV3 cards with 2N® PiCard technology
• Reading PACs ID (HID iClass cards with SIO object)

Touch Keyboard and Fingerprint Reader

The touch keyboard is equipped with a capacitive layer with a sensitivity of 0.1 pF and regular automatic calibration (SmartSence Auto-tunning), avoiding false readings on wet surfaces. The keyboard also includes a multi-colored LED indication and acoustic response for each touch.

The fingerprint reader uses an optical sensor protected by durable glass, with an algorithm for detecting false fingerprints and a detection surface of 15.24 x 20.32 mm. It is certified according to the FBI standard and resistant to water and dust.

Mechanical Properties

The intercom has a sturdy zinc frame with a surface finish (nickel and black). The dimensions vary depending on the number of modules:

• 1 module: 107 (W) x 130 (H) x 28 (D) mm
• 2 modules: 107 (W) x 234 (H) x 28 (D) mm
• 3 modules: 107 (W) x 339 (H) x 28 (D) mm

The intercom operates in a temperature range from -40°C to +60°C and relative humidity from 10% to 95% (non-condensing). The weight is 2 kg and the frame rating is IP54 and IK08.
