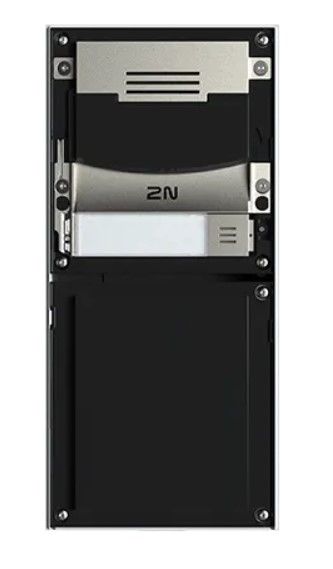

9155211CB 2N IP Verso 2.0 Main unit with camera, Black

The 2N 9155211CB IP Verso 2.0 is the second generation of the world's best-selling IP intercom, featuring a wide-angle camera with Full HD resolution and a new ARTPEC-7 processor that supports innovative features.

Key Features

This modular intercom offers maximum design flexibility and functionality, allowing you to customize the system according to the specific needs of the project.

Camera and Video

<p-The 2N IP Verso 2.0 camera offers a maximum resolution of 1920 x 1080 pixels and a viewing angle of 138 horizontal degrees and 105 vertical degrees. The WDR-capable lens ensures exceptional video quality even in poor lighting conditions.

Processor and Technology

The ARTPEC-7 processor underlies the innovative features of this intercom, including QR code reading and Zipstream video compression, which reduces bit rate and storage requirements for Full HD video streams by 50%.

Access and Security

The intercom supports various access methods, including reading QR codes, mobile access via WaveKey, RFID, and fingerprint reading with an optical sensor protected by durable glass. The 2N PiCard technology allows the reading of MIFARE DESFire EV2/EV3 cards and other contactless access technologies.

Access Methodologies

• Reading QR codes
• Mobile access with WaveKey
• RFID
• Fingerprint reading
• MIFARE DESFire EV2/EV3 cards and other contactless technologies

Design and Construction

The chassis is made of anodized aluminum, ensuring exceptional durability and resistance to extreme environmental conditions. The sturdy zinc structure with surface finish (available in nickel and black) ensures IP54 and IK08 protection.

Mechanical Characteristics

• Operating temperature: -40°C to +60°C
• Operating relative humidity: 10%-95% (non-condensing)
• Net weight: 1.60 kg, gross weight: 2.20 kg
• Dimensions (excluding frame): 233 (H) x 105 (W) x 22 (D) mm

Power and Connectivity

The intercom can be powered via PoE or via DC 12V/1A power supply. Connectivity includes a 10/100BASE-TX LAN port with auto-MDIX and an RJ45 jack.

Power and Connectivity

• Power supply: PoE and/or 12V/1A DC
• LAN: 10/100BASE-TX with Auto-MDIX, RJ45 jack
• Relay outputs: NO/NC contacts, up to 30V/1A AC/DC

Mobile integration

The intercom is compatible with mobile applications for Android 6.0 and higher, and iOS 12.0 and higher.
