9155101CB 2N IP Verso - Main unit with camera - black
- MT Code
- 2NN_9155101CB
- Manufacturer Code
- 9155101CB
- Brand
- 2N

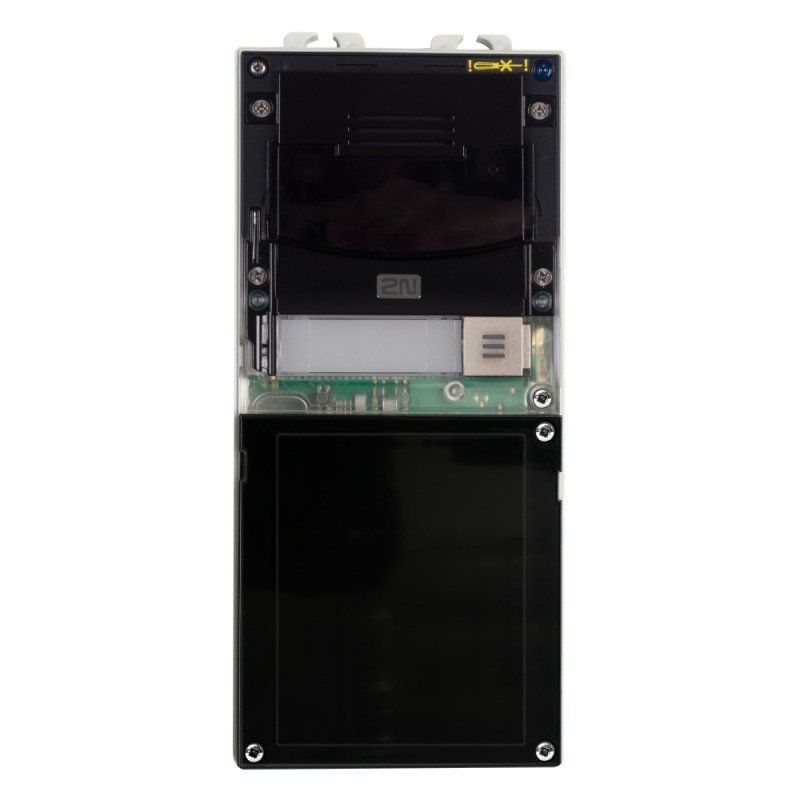

The 2N 9155101CB is a modular main unit for IP intercoms, designed to offer a versatile and highly customizable solution for access control and communication.
Key Features
The main unit is available in a black version and requires two positions in the frame or box for installation, leaving an additional position for installing additional modules.
Modularity and Customization
The modular structure of the 2N IP Verso allows you to add various modules such as keyboards, RFID card readers, induction sensors and much more, allowing the system to be adapted to the specific needs of the user.
Camera and Vision Features
The main unit includes a camera with a resolution of 1280 x 960 pixels for photos and 640 x 480 pixels for video calls. The camera has a 120° horizontal, 90° vertical and 145° diagonal view, as well as a night vision function.
Audio and Communication
The system is equipped with an integrated microphone and a 2-watt speaker with a sound pressure of 78 dB at 1 kHz and 1 meter away. It supports audio codecs such as G.711, G.729, G.722 and L16/16kHz.
Security and Authentication
Security is guaranteed by RSA-1024 and AES-128 encryption protocols. It is also compatible with 13.56 MHz and 125 kHz RFID card readers, as well as NFC technology and the 2N Mobile Key application.
Interfaces and Power Supply
The main unit can be powered via PoE (802.3af, Class 0 - 12.95W) or through a DC 12V ± 15% /2A adapter. It has a 10/100BASE-TX LAN interface with auto-MDIX and an NC/NO switching output with maximum contacts of 30 V/1 A AC/DC.
Protocols and Standards
It supports various protocols including SIP 2.0, DHCP, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, and HTTPS.
Environmental Conditions
The unit is designed to operate under a wide range of environmental conditions, with an operating temperature of -20°C to 60°C and a relative humidity of 10%-95% (non-condensing). The protection rating is IP 54 and IK08.
Accessories and Options
Additional Modules
- Keyboards
- RFID card readers
- Induction sensors
- Bluetooth modules
- Fingerprint readers
Installation
Available for wall or recessed installation, with different backplate options to suit various configurations.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 9155101CB | |
| Brand | 2N | |
| Nome prodotto | Unità principale 2N IP Verso, solo audio, nichel/nero | |
| Finitura/Colore | nero | |
| Numero di pulsanti | 1 | |
| Protocollo di segnalazione | SIP (UDP, TCP, TLS) | |
| Microfono | 1 microfono integrato | |
| Potenza amplificatore | 5 | W |
| Potenza altoparlante | 2 | W |
| Pressione sonora | 78 | dB |
| Tipo di alimentazione | PoE e/o 12V/1A DC | |
| Standard PoE | 802.3af (Classe 0-12.95W) | |
| Interfaccia LAN | 10/100BASE-TX con Auto-MDIX, RJ-45 | |
| Temperatura d'esercizio | -40°C a +60°C | °C |
| Grado di protezione | IP54, IK08 |
- Variant 9155101C Versione con finitura in nichel anziché nera.
- Variant 9155211CB Versione equivalente con telecamera Full HD integrata in colore nero.
- Accessory 9155031B Modulo tastierino aggiuntivo con simboli retroilluminati in colore nero.
- Accessory 9155036 Modulo touchscreen con rubrica telefonica ad albero.
- Accessory 91550451 Modulo lettore di impronte digitali con tecnologia ottica.
