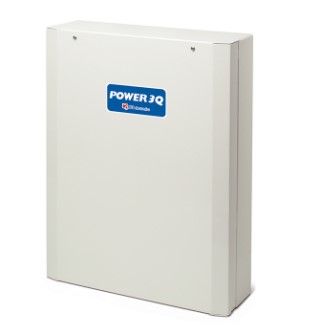

AVS ELECTRONICS 1120113 XSAT PW3Q 3.4 A power supply with zone expansion in metal box

Serial expansion with the same characteristics as XSAT 36 complete with a 3 or 5 Ah power supply, for UNIVERSAL use, that is, with other systems or with third-party components.

- Current: 3.4 A max.

- Connection to the control panel: RS 485 serial

- 220 Vac network supervision and control, fuse and battery status

- Zones: 10 expandable to 18 with optional XEXP8 module

- Balanced inputs, Switch Alarm, inertial

- Outputs: 9 (relay+O.C.)

- Accessible battery: 12 Vdc from 7Ah to 17Ah

- Metal enclosure dimensions (LxHxD): 330 x 420 x 117 mm

- Compatibility: XTREAM 32/64/640, ADVANCE 88, CONCORDE 54
