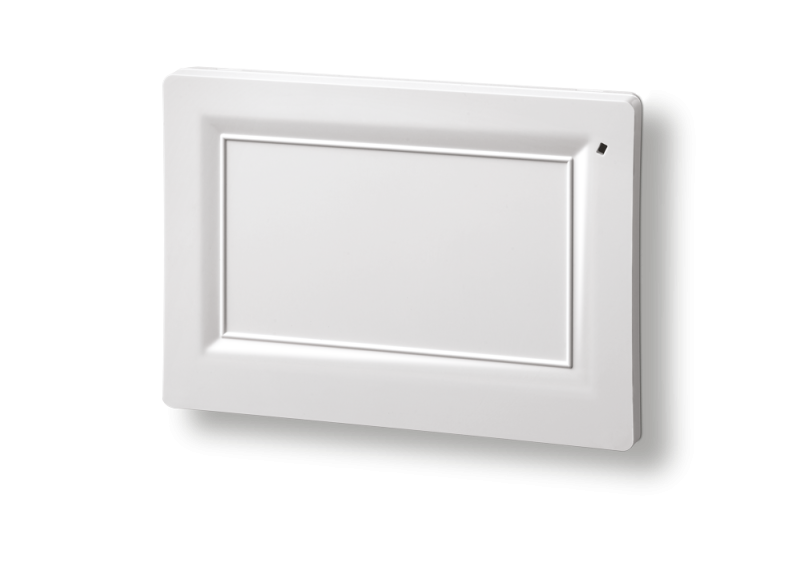

AVS ELECTRONICS 1121113 XSAT WS 4 PRO 32-zone two-way radio expansion module

This expansion expands the functionality of a traditional “wired” control unit to the possibility of creating a “hybrid” type system (wire/radio) to be able to easily reach every point of the environment wirelessly.

- Two-way radio device: up to 32 radio zones, 64 remote controls, 1 radio siren

- Radio technology: bidirectional dual antenna GFSK FM 868 MHz

- Connection: RS485 serial

- Terminals: 2 programmable In/Out

- Power supply and absorption: 13.8 Vdc, 45 mA max

- Dimensions (LxWxH): 129.5 x 16 x 92.5 mm

- Compatibility: XTREAM and WS4 series bidirectional peripherals

CERTIFICATION: IMQ-INCERT EN 50131 Grade 2
