32 zone radio receiver with radio video verification - 868MHz

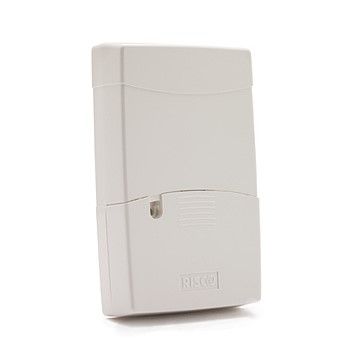

RISCO RP432EWV800A 32 zone radio receiver with radio video verification - 868MHz

MT Code: RSC_RP432EWV800A
Manufacturer Code: RP432EWV800A
Brand: RISCO

The radio expansion with visual verification supports up to 32 radio devices and allows the reception of images taken by the cameras of the RISCO radio detectors.

The module is installed on the RISCO BUS and can be placed anywhere in the environment to be protected, in order to obtain the best radio performance, or even be housed inside the polycarbonate enclosure of the power plant. For a faster and more optimal transmission of images, the module can be installed on the control panel bus appropriately configured as a fast BUS.

Up to 8 camera sensors can be stored in a single radio expansion with visual verification. On ProSys Plus, up to 16 radio expansions can be installed with visual verification, 8 at most on a single BUS line and 8 at most in fast BUS mode.

The radio expansion with visual verification is compatible with version 1.4 of the ProSys Plus system.

Features:

- Connection to the RS-485

Control Unit

- 13Vcc +/- 10% power

- Typical consumption 40 mA; max 65 mA

RF power - Safety: 10 mW (max); Video: 100mW (max) - Frequency - Safety:

868.65 Mhz; Video: 869,525 Mhz -

RF immunity in accordance with EN 50130-4 - Operating temperature: from 10°C to

55°C - Storage temperature: from 20°C to 60°C

- Dimensions: 125x78x25 mm

- EN50131-3 Certification, Grade 3, Environmental Class II, PD 6662:2017
