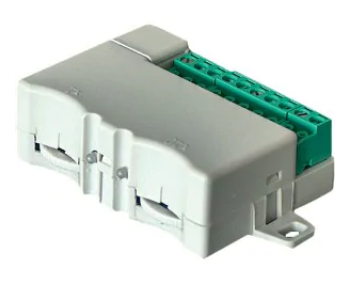

NOTIFIER MMT ADDRESSABLE MODULE 1 INPUT 4÷20 MA

4-20mA interface for addressable analog control panels. It allows the management of a gas detector. This, through the control panel, will assign an address to the detector. The sensor will have two early warning thresholds and one alarm threshold. The thresholds, depending on the type of gas, will be expressed in ppm or in% of L.I.E. The coding of the address takes place through a dip-switch, and uses an address of the 99 available per line. The module requires an auxiliary power supply. Usable with AM4000G control unit and with AM series control units. 15-30 Vcc power supply. Quiescent current 10 mA plus current for gas detector with external supply. Operating temperature from 0°C to +50°C. Relative humidity up to 93%.
