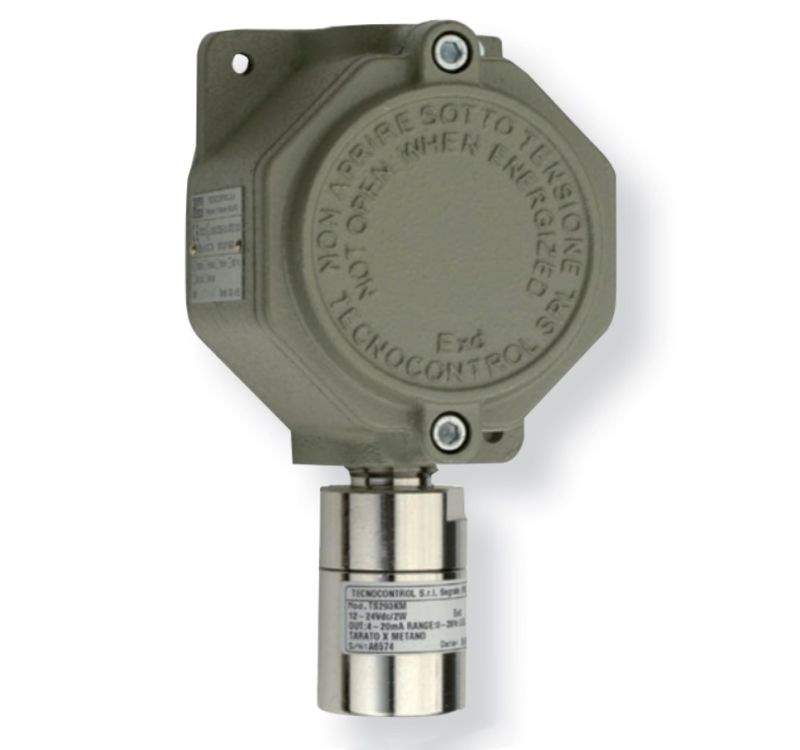

TECNOCONTROL TS293EH 4-20mA Exd ATEX electrochemical detector for H2S

4-20mA Exd ATEX electrochemical detector for H2S

Gas detectors in explosion-proof housing for use in areas with potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

• Power supply: 12÷24 Vcc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 1 linear output 4÷20 mA • Polarized plug-in terminals

Detected gas: Hydrogen sulfide Replacement
cartridge: ZSEH1/EX Measuring range: 0÷100 ppm
Calibration
cylinder: B0420 Average clean air life: 2 years
