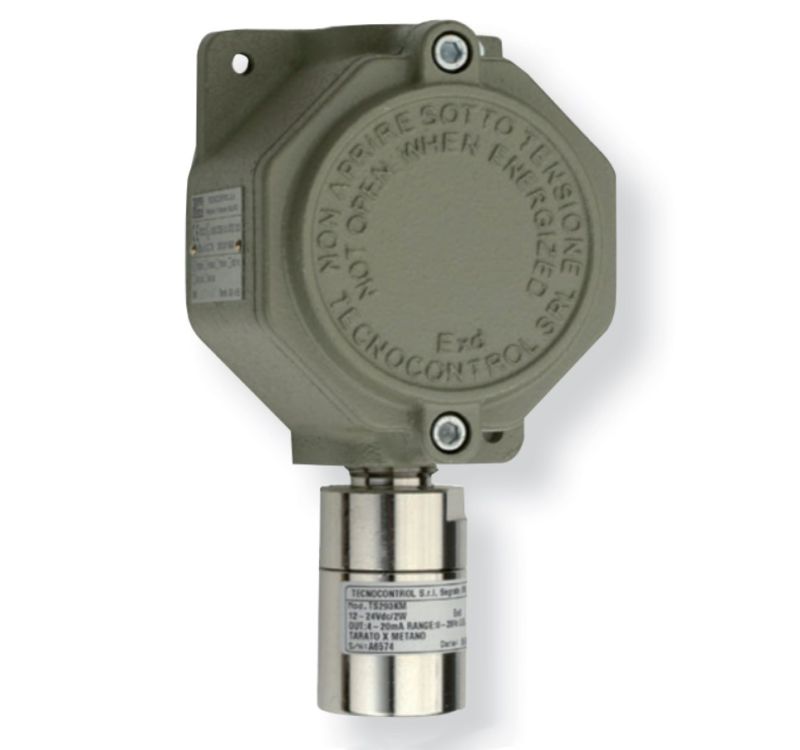

TECNOCONTROL TS293IC2 4-20mA Exd ATEX infrared detector for CO2 - 5% Vol.

4-20mA Exd ATEX infrared detector for CO2 - 5% Vol.

Gas detectors in explosion-proof housing for use in areas with potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

• Power supply: 12÷24 Vcc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 1 linear output 4÷20 mA • Polarized plug-in terminals

Gas detected: Carbon dioxide Replacement
cartridge: ZSI01C/EX Measuring
range: 0÷5% Vol.
Calibration cylinder: B0405 Average clean air
life: >5 years
