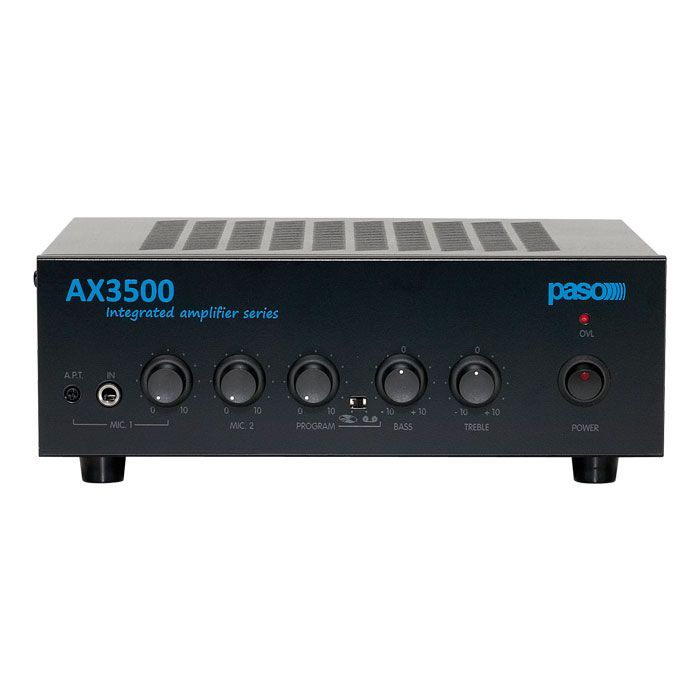

PASO AX3504 40W Amplifier Mixer

40W Amplifier Mixer

The AX3504 has two balanced microphone inputs, one of which has an automatic precedence function (VOX). Two auxiliary inputs on the RCA socket allow connection to music sources; a front selector allows the selection of the source. A line output is available for the cascade connection of a second amplifier or a possible recorder. The device is designed to be connected to a telephone system via a terminal block. This balanced input has its own level control and is equipped with a VOX circuit for the dissemination of messages with a higher priority than any other input (except the microphone connected to the front). A previous contact, available on a terminal block, activates the priority of the microphones on the musical sources and simultaneously sends a warning signal (DIN-DON). To effectively take advantage of the precedence function, you can use the B701-M/B701-MG microphone stations. Possibility of rack installation using a special accessory. The output terminal block allows the connection of low impedance (8W) or constant voltage (50, 70 and 100 V) loads. Selectable mains supply (230/115V).
