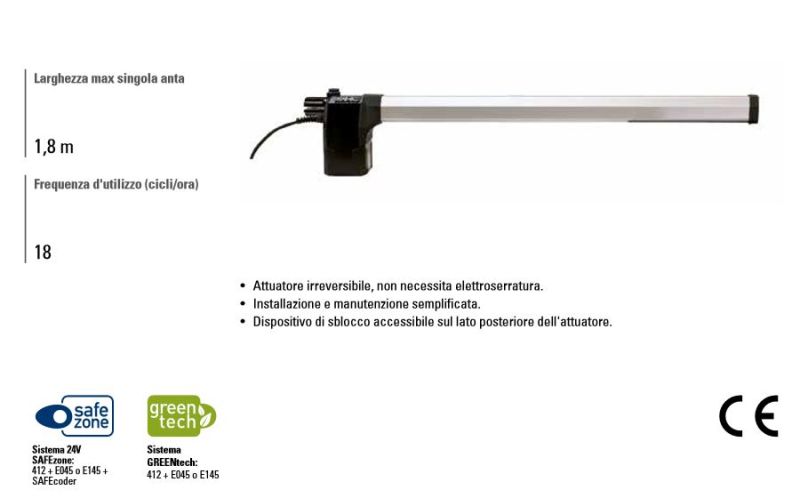

FAAC 104470 412 DX actuator

412 DX actuator

230V electromechanical actuator

Maximum width of a single leaf: 1.8 m - Frequency of use (cycles/hour): 18

Irreversible actuator, no electric lock is required. - Simplified installation and maintenance. - Unlocking device accessible on the rear side of the actuator.

412 dx or sx includes: an electromechanical actuator (DX or SX), installation accessories, an unlocking key, an 8µF 400V starting capacitor.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 280 W Maximum thrust force: 3500 N - Maximum rod speed: 16 mm/s -Stem stroke: 290 mm Maximum opening angle of door: 110° Ambient operating temperature: -20°C ÷ + 55°C Thermoprotection: 140°C Degree of protection: IP44 Weight: 6.5 kg Frequency of use: 18 cycles/hour Maximum leaf width: 1.8 m Fixing brackets: rear connection to weld/screw on front to weld/screw Dimensions (LxDxH): 991 x 101 x 172 mm Electronic equipment: Not included
