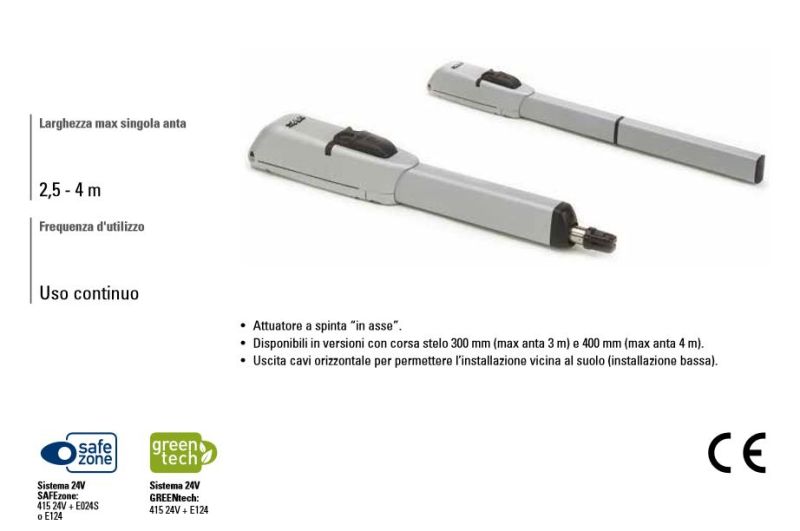

FAAC 1044151 Original 415 - 24V Hinged Door Gate Motor Actuator

Original 415 - 24V Hinged Door Gate Motor Actuator

24V electromechanical actuator Maximum width of a single leaf: 2.5 - 4 m (with electric lock) Frequency of use: Continuous use - “in-axis” thrust actuator. - Available in versions with a rod stroke of 300 mm (max 3 m width) and 400 mm (max door 4 m). - Horizontal cable outlet to allow installation close to the ground (low installation). 415 24V includes: an electromechanical actuator, installation accessories and an unlocking key.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 70 W Maximum thrust force: 2800 N Max rod speed: 16 mm/s Stem stroke: 300 mm Max door opening angle: 110° Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP54 Weight: 7.8 Kg Frequency of use: continuous use Maximum leaf width: 2.5 m (3 with electric lock) Fixing brackets: rear connection to weld/screw on - front connection to solder/screw Dimensions (LxDxH): 836 x 101 x 147 mm Electronic equipment: Not included
