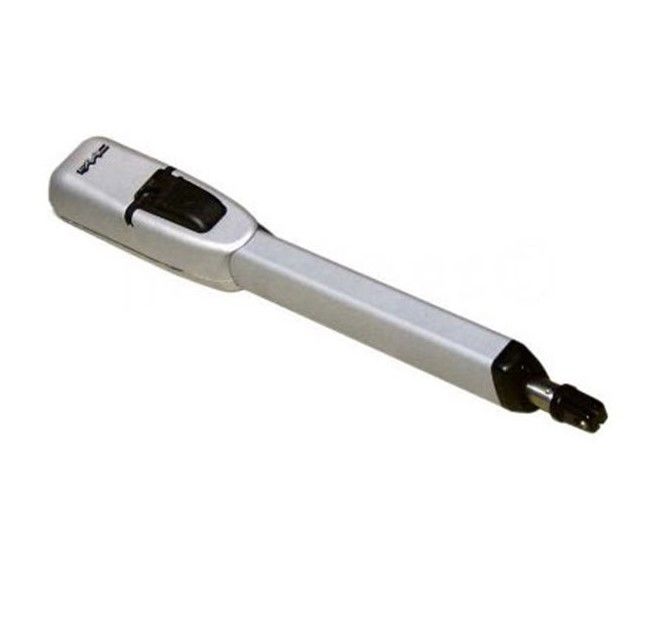

FAAC 104416 415 LS Swing Gate Actuator Motor Actuator Operator

415 LS Swing Gate Actuator Motor Actuator Operator

230V electromechanical actuator - “in-axis” thrust actuator. - Available in versions with 300 mm rod travel (max 3 m width) and 400 mm (max 4 m width). - Horizontal cable outlet to allow installation close to the ground (low installation). 230V electromechanical actuator Maximum width of a single door: 2.5 — 4 m (with electric lock) Frequency of use: S3 — 30% 415 230V includes: an electromechanical actuator, installation accessories, an unlocking key, an 8µF 400V starting capacitor.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 300 W Maximum thrust force: 3000 N (*) Max rod speed: 16 mm/s (*) Stem stroke: 400 mm Maximum door opening angle: 110° Ambient operating temperature: -20°C ÷ +55°C Heat protection: 140°C Degree of protection: IP54 Weight: 8 Kg Frequency of use: S3 — 30% Max leaf width: 3 m (4 m with electric lock) Fixing brackets: Rear weld attachment/ screw — front connection to solder/screw Dimensions (LxDxH): 942 x 101 x 148 mm Electronic equipment: Not included
