FAAC 109512 540 V BPR Sectional Door Motor Gear Motor

540 V BPR Sectional Door Motor Gear Motor

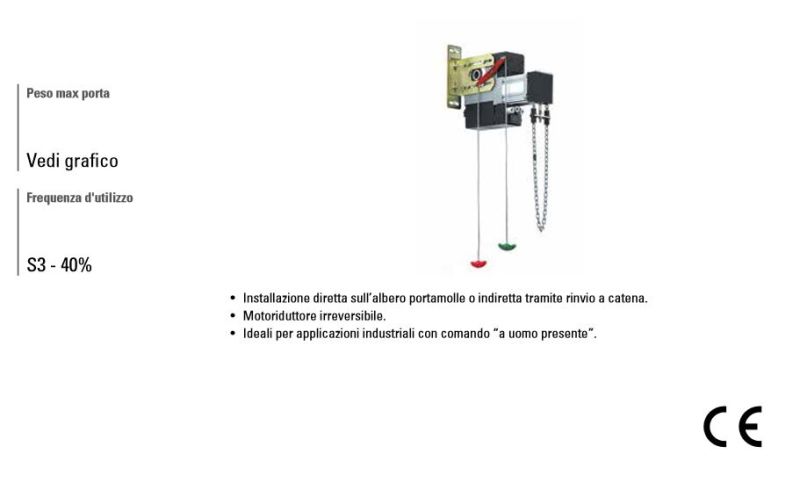

230V gearmotor for industrial sectional doors Frequency of use: S3 — 40% - Direct installation on the spring shaft or indirect installation using a chain link. - Irreversible gearmotor. - Ideal for industrial applications with “man-present” control. 540 V BPR includes: a gearmotor with a running end and integrated 540BPR electronic board, fixing plate, emergency “lanyard” unlocking device, “chain” manual handling device (winch) for installations up to 4 m high.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 800 W Motion grip: Through shaft diameter 25.4 mm (1″) Rotational speed when moving: 23 rev/min - Max stroke: 24 laps Max torque: 50 Nm - Encoder: No Ambient operating temperature: -20 °C ÷ +55 °C Degree of protection: IP54 Oil type: FAAC HP OIL Weight: 14 Kg Dimensions (LxDxH): 92 x 376 x 266 mm Electronic equipment: built-in 540BPR Frequency of use: S3 — 40%
