FAAC 109550 541 V 3PH Sectional Door Motor Gear Motor

541 V 3PH Sectional Door Motor Gear Motor

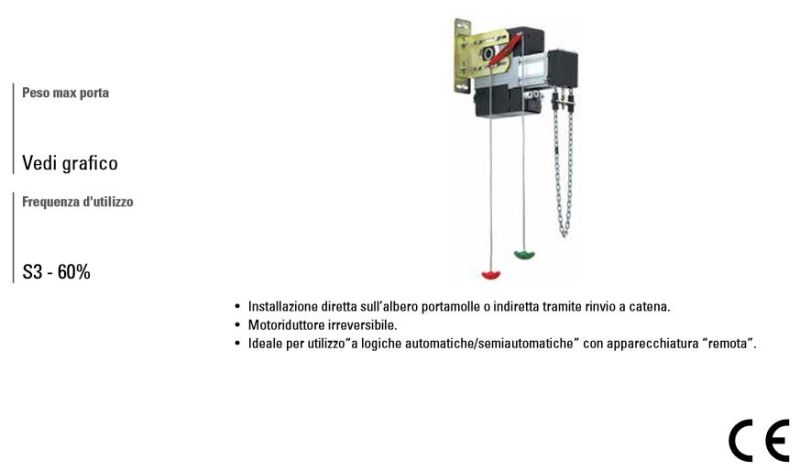

400V gearmotor for industrial sectional doors Frequency of use: S3 — 60% - Direct installation on the spring shaft or indirect through chain referral. - Irreversible gear motor. - Ideal for “automatic” /semi-automatic logic use with “remote” equipment. 541 V 3PH includes: a gearmotor with running window, fixing plate, emergency “cord” unlocking device, “chain” manual movement device (winch) for installations up to 4 m high.

TECHNICAL CHARACTERISTICS: Network supply voltage: 400V~ 3PH 50 Hz Electric motor: Three-phase asynchronous Max power: 720 W Motion grip: 25.4 mm (1″) diameter pass shaft Rotational speed of motion grip: 23 rpm - Max stroke: 24 revolutions Max torque: 70 Nm - Max door weight: See graph FIELD OF APPLICATION Encoder: No Ambient operating temperature: -20 °C ÷ +55 °C Degree of protection: IP54 Oil type: FAAC HP OIL Weight: 14 Kg Dimensions (LxDxH): 92 x 376 x 266 mm Electronic equipment: Not included Frequency of use: S3 — 60%
