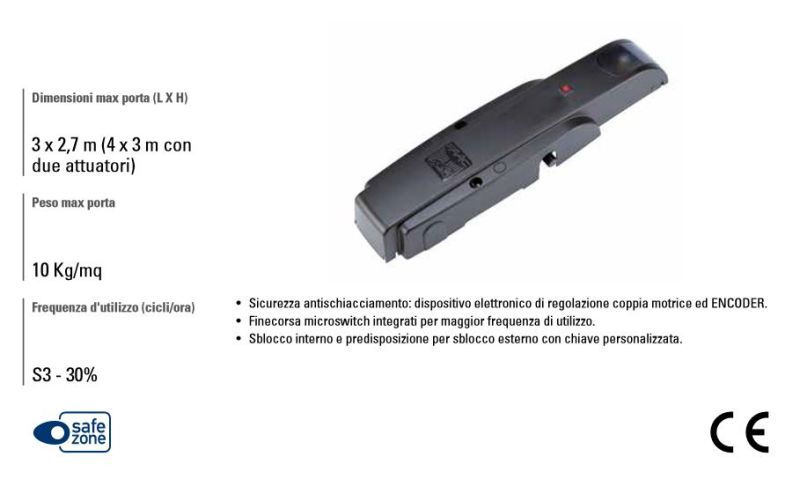

FAAC 110549 Motor Actuator With E550 Central Unit For Overhead Doors 230v 550 ITT

Motor Actuator With E550 Central Unit For Overhead Doors 230v 550 ITT

230V electromechanical actuator - Anti-crush safety: electronic torque control device and ENCODER. -Integrated micro-switch windows for greater frequency of use. - Internal unlocking and provision for external unlocking with a personalized key. Max door dimensions (L X H): 3 x 2.7 m (4 x 3 m with two actuators) Max door weight: 10 Kg/sqm Frequency of use (cycles/hour): S3 — 30% 550 Slave/550 L Slave include: an electromechanical actuator, protective cover with built-in ceiling light, timed courtesy lamp, a starting capacitor 10µF 400V (8µF 400V mod. L). 550 ITT/550 L ITT include: an electromechanical actuator, protective cover with built-in ceiling light, E550 electronic equipment, mechanical opening and closing windows, encoder, timed courtesy lamp, a starting capacitor 10µF 400V (8µF 400V mod. L).

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 350 W Max torque: 300 Nm - Max angular speed: 12 °/s - Open time: 15 s Encoder: Optical Ambient operating temperature: -20 °C ÷ +55 °C Heat protection: 140 °C Degree of protection: For indoor use only (IP31) Weight: 7.5 Kg Dimensions (LxDxH): 670 x 175 x 120 mm Max door size (LxH): 3.00 x 2.70 - Max door weight: 10 Kg/sqm Electronic equipment: built-in E550 Frequency of use: S3 — 30%
