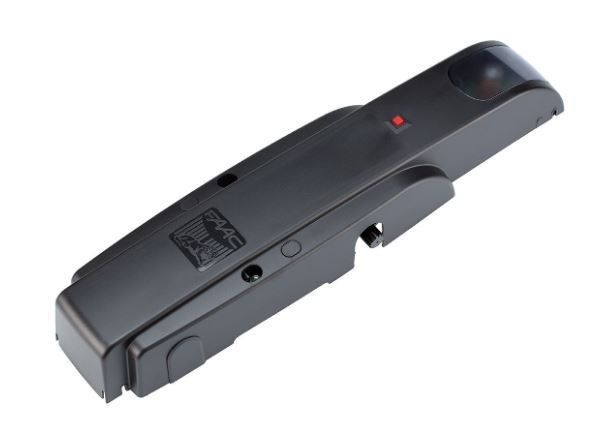

FAAC 110558 Motor Actuator Without Central Overhead Doors 230v 550 SLAVE L

Motor Actuator Without Central Overhead Doors 230v 550 SLAVE L

230V electromechanical actuator - Anti-crush safety: electronic torque adjustment device and ENCODER. - Integrated microswitch windows for greater frequency of use. - Internal unlocking and provision for external unlocking with a customized key. Max door dimensions (L X H): 3 x 2.7 m (4 x 3 m with two actuators) Max door weight: 10 Kg/sqm Frequency of use (cycles/hour): S3 — 30% - 550 Slave/550 L Slave include: an electromechanical actuator, protective cover with built-in ceiling light, timed courtesy lamp, a starting capacitor 10µF 400V (8µF 400V mod. L). 550 ITT/550 L ITT include: an electromechanical actuator, protective cover with built-in ceiling light, E550 electronic equipment, mechanical opening and closing windows, encoder, timed courtesy lamp, a starting capacitor 10µF 400V (8µF 400V mod. L).

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 280 W Max torque: 250 Nm Max angular speed: 8 °/s Opening time: 22 s Encoder: Optical Ambient operating temperature: -20 °C ÷ +55 °C Heat protection: 140 °C Degree of protection: For indoor use only (IP31) Weight: 7.5 Kg Dimensions (LxDxH): 670 x 175 x 120 mm Max door size (LxH): 4.00 x 3.00 (**) Max door weight: 10 Kg/sqm Electronic equipment: Not included Frequency of use: S3 — 30%
