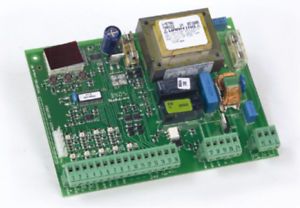

578D ELECTRONIC BOARD

• The 578D board can be installed remotely to control sliding gates or, for industrial doors, it can also be inserted in a dedicated container equipped with a disconnector, remote switches, control panel and activation key

TECHNICAL CHARACTERISTICS:

• Type of power supply: Integrated
• Network supply voltage: 220-240V~ 50/60 Hz
• Max power: 10 W Maximum motor power: 1,000 W
• Maximum accessory load:
• 0.5 A Programming:
• No. 3 keys (+, -, F) and display, “basic” and “advanced” mode
• Status report: A display Operating logic:
Automatic, automatic “step by step”
• , Semiautomatic, Semiautomatic “step by step”, Safety, Semiautomatic B, Present Man C, Logic mixed B/C
• Programmable functions: Operating logic, Pause time, Push force, Opening/closing direction, Torque at the start, Braking, Failsafe, Pre-flash, Warning lamp, Timed exit, Electric lock in ap.
• /ch., Safety logic in ap. e ch., Encoder, Anti-crush sensitivity, Slows, Partial opening time, Working time, Assistance request, Counter Working time: Programmable (from 0 to 4 min)
• Pause
• time: Programmable (from 0 to 4 min)
Motor force adjustment: Adjustable to
• 50 levels Terminal block inputs:
• Open, Partial open, Safety when opening, Safety when closing, Stop, Coast, Power supply + ground, End of operation, terminal block output: Blinking, Engine,
Power supply
• 24V accessories, 24V warning lamp, Timed output, Electric lock control, Traffic light, Failsafe
• Quick connector: 5-pin card connection, MINIDEC, DECODER or RP receivers Protection fuses: 2 Ambient
• operating temperature: -20°C ÷ +55°C Container compatibility: Mod.
• E — L — LM
