FAAC 104501 580 CBAC 0.75 LT OPERATOR

580 CBAC 0.75 LT OPERATOR

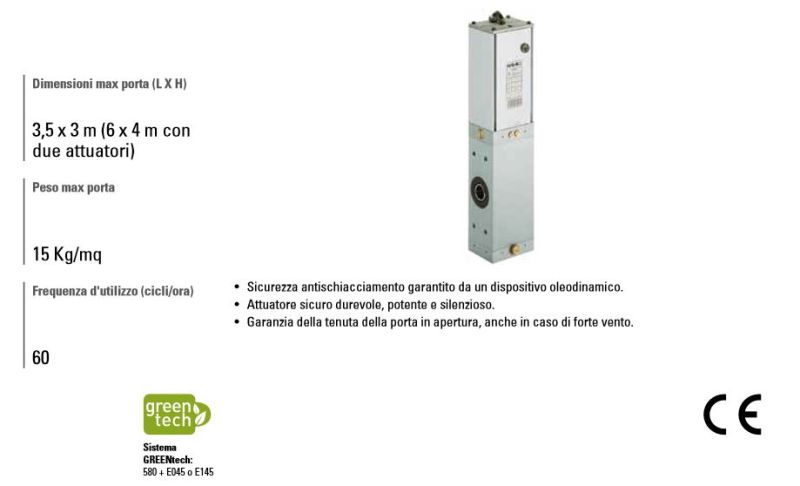

230V hydraulic actuator

Anti-crush safety guaranteed by a hydraulic device. - Safe, durable, powerful and silent actuator. - Guaranteed tightness of the door when opening, even in case of strong wind. Max door dimensions (L X H): 3.5 x 3 m (6 x 4 m with two actuators) - Maximum door weight: 15 Kg/sqm Frequency of use (cycles/hour): 60

580 includes: a hydraulic actuator with opening/closing hydraulic lock, an 8µF 400V starting condenser.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Max torque: 450 Nm - Motor pump capacity: 0.75 lpm (*) Max angular speed: 9°15'/s - Opening time: 20 Ambient operating temperature: -20 °C ÷ +55 °C Thermoprotection: 120 °C Degree of protection: IP55 Oil type: FAAC HP OIL Weight: 12 Kg Dimensions (LxDxH): 480 x 96 x 110 mm Maximum port size (LxH): 3.50 x 3.00 (**) Max door weight: 15 Kg/sqm Electronic equipment: Not included Frequency of use: 60 cycles/hour
