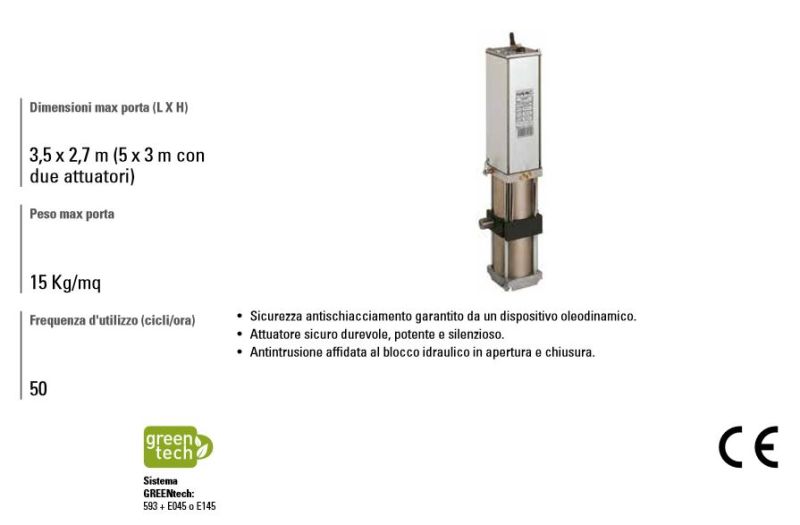

FAAC 110597 230v 593 CBAC Counterbalanced Overhead Door Operator Motor Actuator

230v 593 CBAC Counterbalanced Overhead Door Operator Motor Actuator

230V hydraulic actuator Anti-crush safety guaranteed by a hydraulic device. Safe, durable, powerful and quiet actuator. Anti-intrusion control thanks to the hydraulic lock when opening and closing. Max port dimensions (L X H): 3.5 x 2.7 m (5 x 3 m with two actuators) Max door weight: 15 Kg/sqm Frequency of use (cycles/hour): 50 593 includes: a hydraulic actuator, mounting brackets, an 8µF 400V starting capacitor.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 220 W Max torque: 400 Nm (*) Motor-pump group flow rate: 0.75 lpm Max angular speed: 9°15'/s (*) Opening time: 20 Ambient operating temperature: -20 °C ÷ +55 °C Heat protection: 120 °C Degree of protection: IP55 Oil type: FAAC HP OIL Weight: 10 Kg Dimensions (LxDxH): 500 x 148 x 93 mm Max port size (LxH): 3.50 x 2.70 5.00 X 3.00 (with two actuators) Max door weight: 15 Kg/sqm Electronic equipment: Not included Frequency of use: 50 cycles/hour
