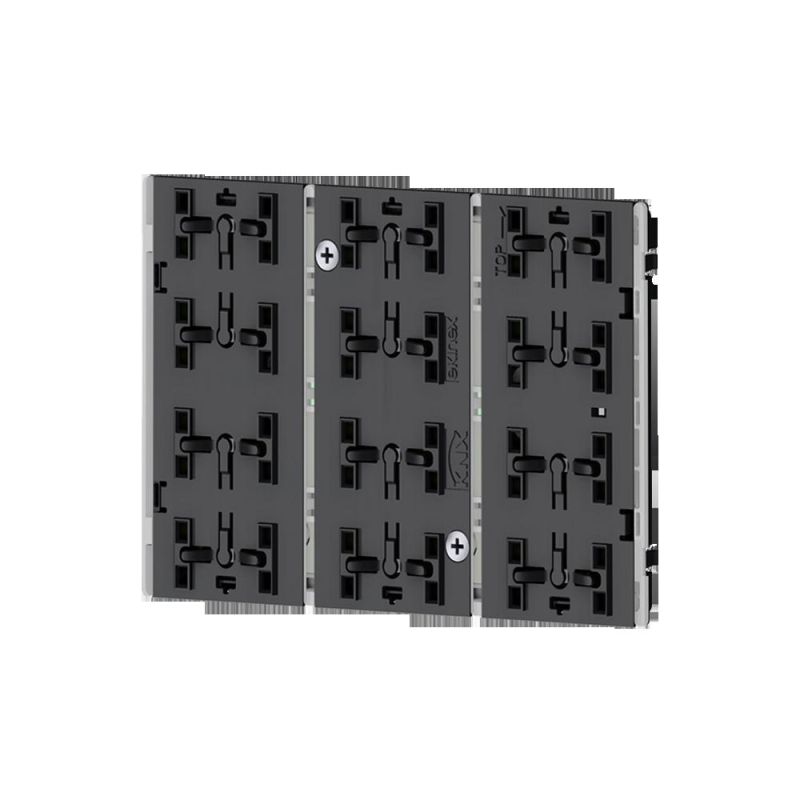

EKINEX EK-EB2-TP-RW 6 channel button - white-red LEDs

6 channel button - white-red LEDs

The 6-channel button (max 12 functions) ekinex® EK-EB2-TP is a KNX S-mode device for the on/off control of utilities, the dimming of lighting fixtures, the control of motorized drives or other control and control functions programmable controls. The device is equipped with a bus communication module and is designed for mounting on a wall-mounted box. Each channel can be freely programmed to perform 1 or 2 bus functions and has four programmable LEDs, for example as a status indicator or night orientation light. The button must be completed with six keys and a frame to be ordered separately. When a button is pressed, the device sends a telegram on the bus, which is received and executed by one or more KNX actuators depending on the programming carried out. The device is powered by SELV 30 Vdc voltage via the KNX bus and does not require auxiliary power.
